Mavruk®

Mavruk® Industrial Panel PC is designed to automate and remotely manage your Vehicles, Work, Machines or a process.

Wi-Fi
Wi-Fi
2.4 GHz, 5 GHz IEEE 802.11 b/g/n/ac

Bluetooth
Bluetooth
5.0, BLE

Hafıza
Storage
8GB, 16GB ve 32GB eMMC

İşlemci
Processor
64 bit quad-core 1.5 GHz ARM
Ekran
Display
5" - 7" - 10"
İşletim Sistemi
Operating System
Linux
Scroll Down
deg
/Mavruk-Logo

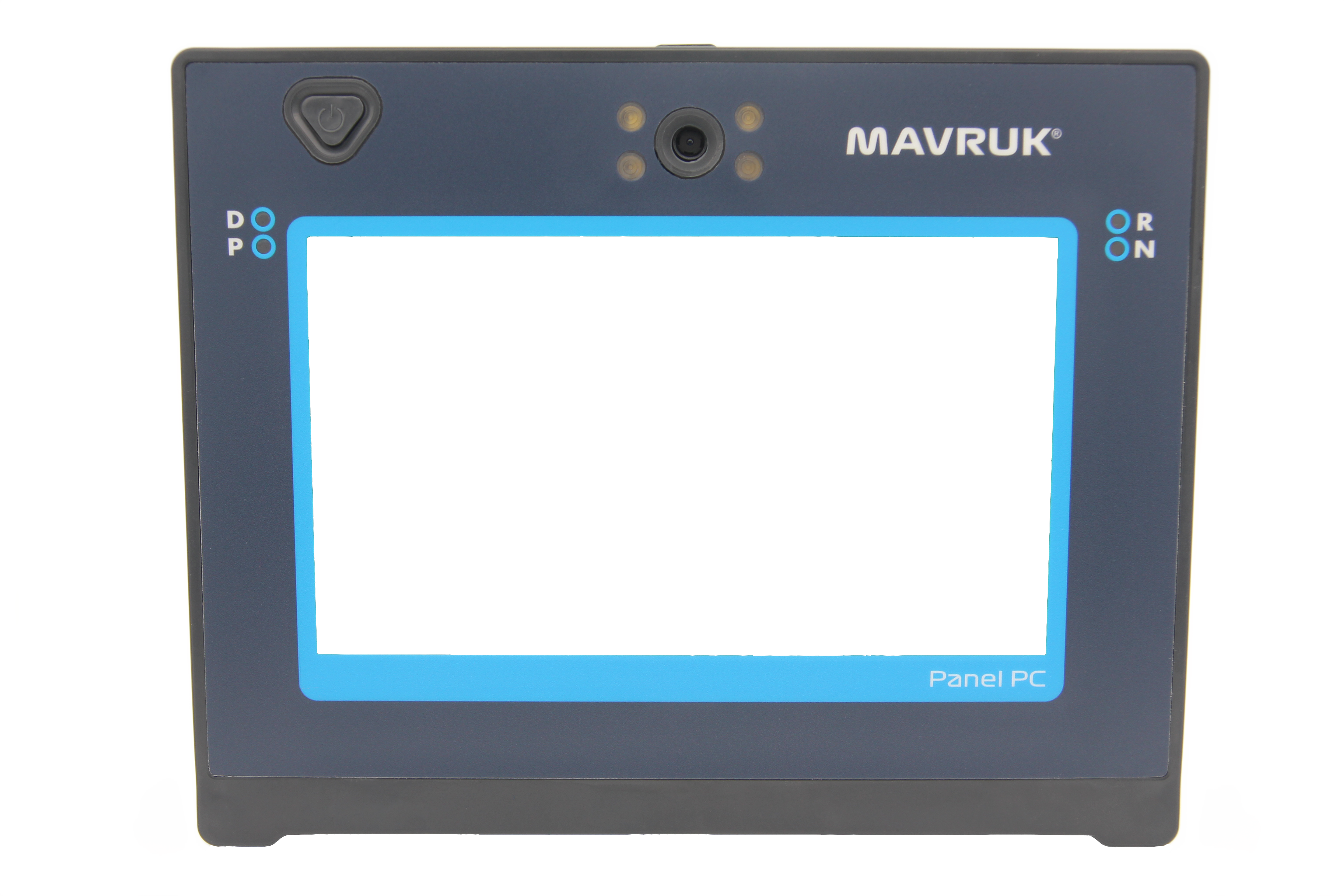

With its powerful ARM processor and embedded operating system, it is a complete task computer for various industries and AI applications

The Mavruk® Industrial Panel PC is designed to automate and remotely manage your tools, operations, machinery, or processes. With its multiple communication ports, it ensures seamless integration with all your industrial machines, enabling your process management to operate according to predefined scenarios. Powered by artificial intelligence, it provides solutions to enhance your business processes and the efficiency of your industrial facilities. These computers are designed to reduce costs, increase efficiency, and keep you instantly informed about your processes, maximizing the value of your investment. It offers touch screen support in 5', 7', and 10.1' sizes. Additionally, it can perform hybrid tasks such as network management and data transmission simultaneously, and its integration with global avionics is simplified.

Data Sending According to Bandwidth

With its built-in GSM modem, it manages your business processes. It automatically adjusts data communication based on the bandwidth of the area it is in. (For example, it can automatically change the resolution and features of the image processed and sent from an external camera connected via RJ45, based on the available bandwidth.)

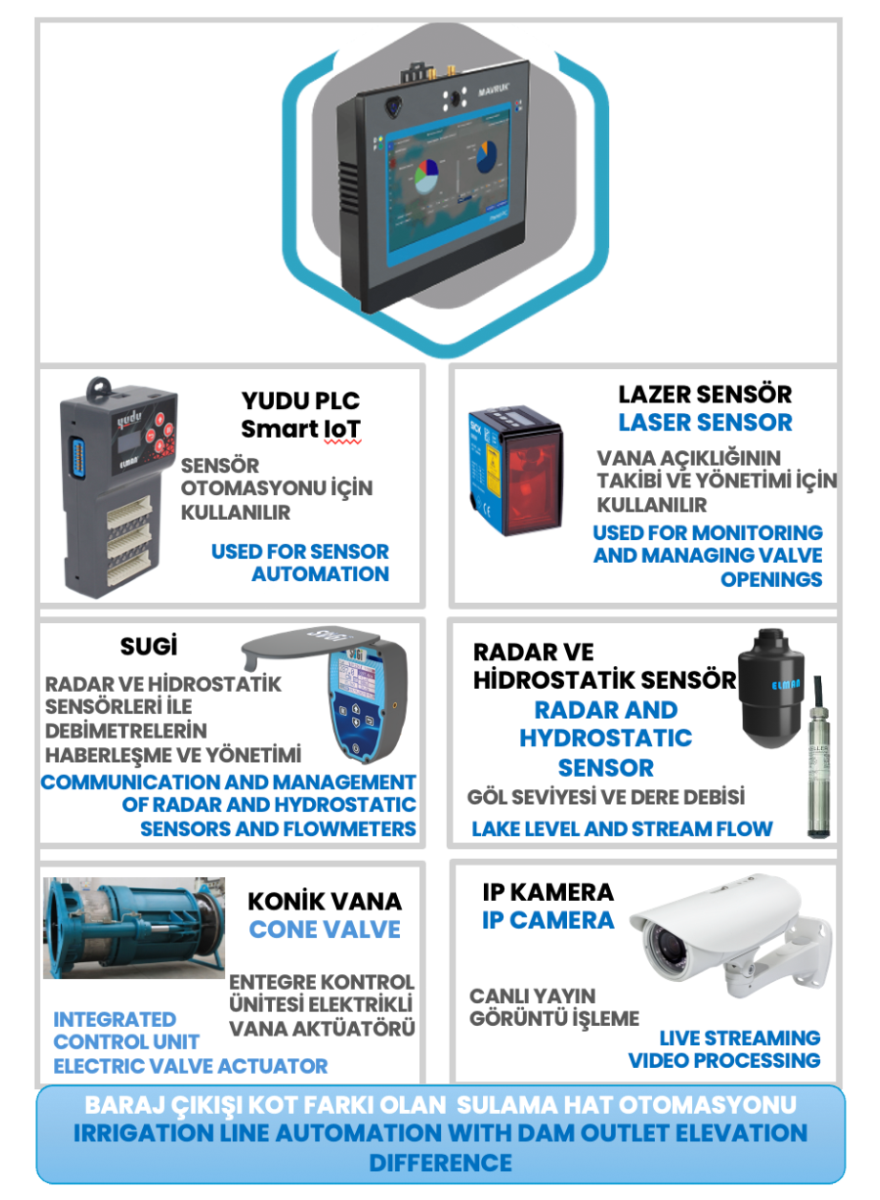

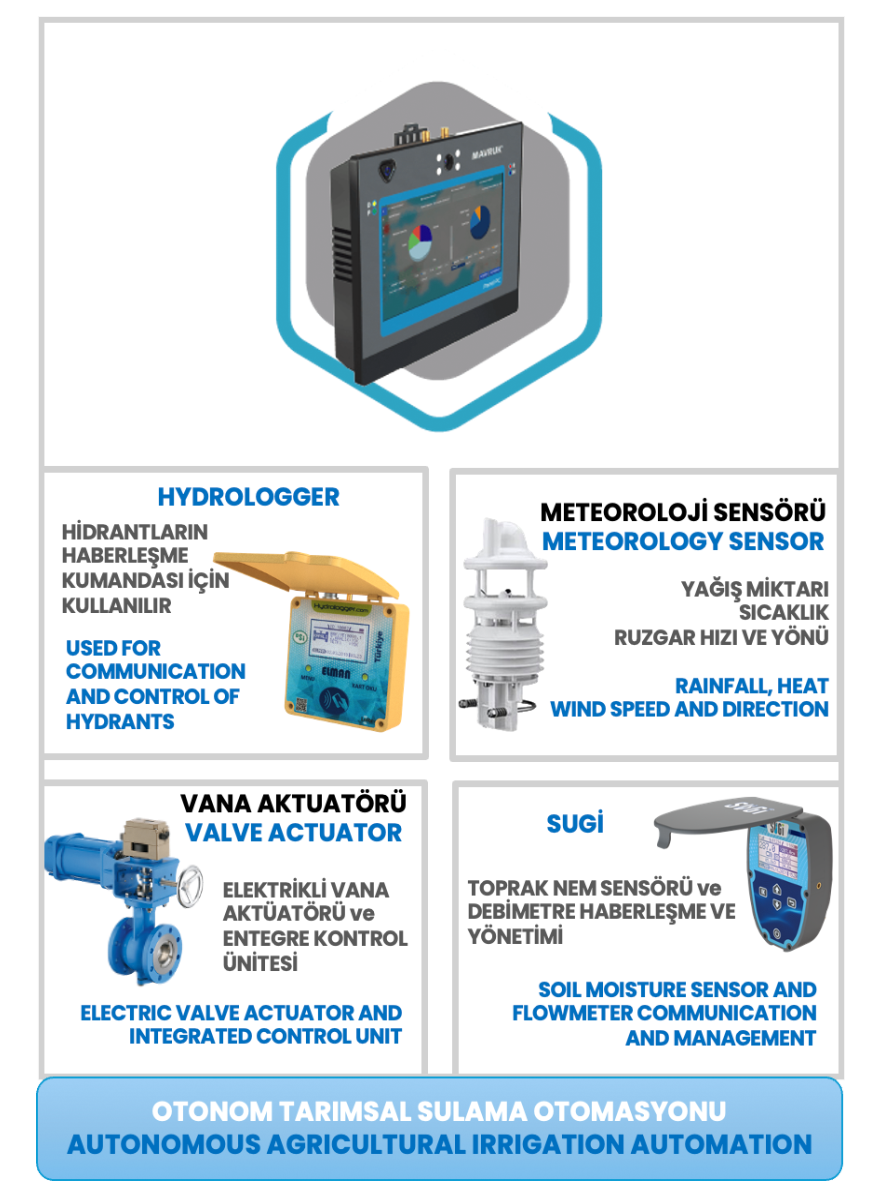

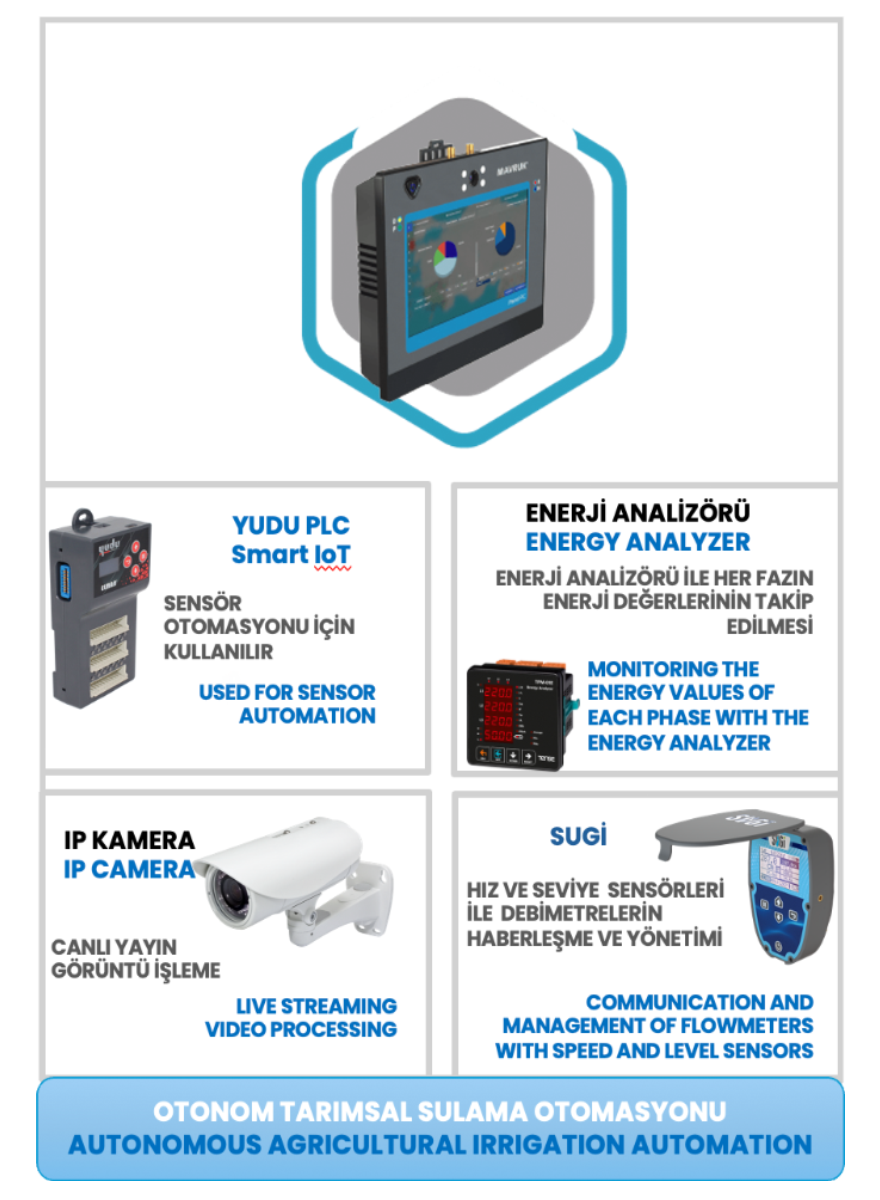

Mavruk Sensor Connection Areas

sensor
sensor
sensor
sensor

Mavruk® Our Projects Using

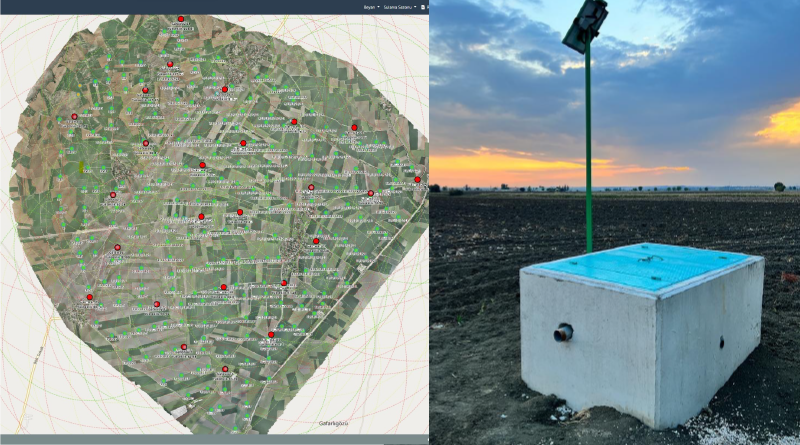

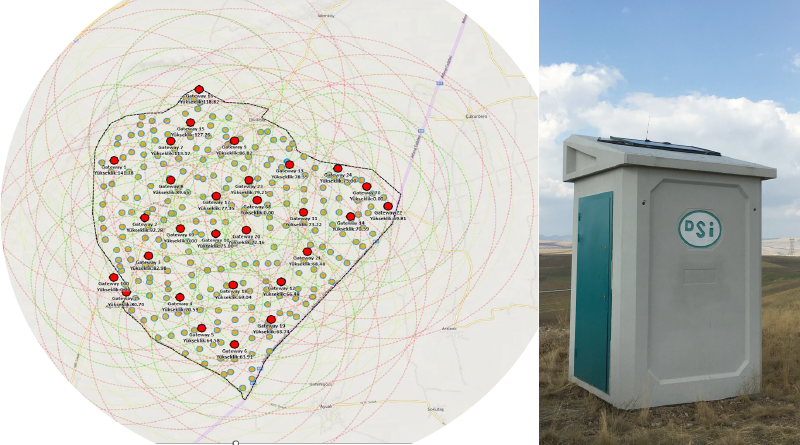

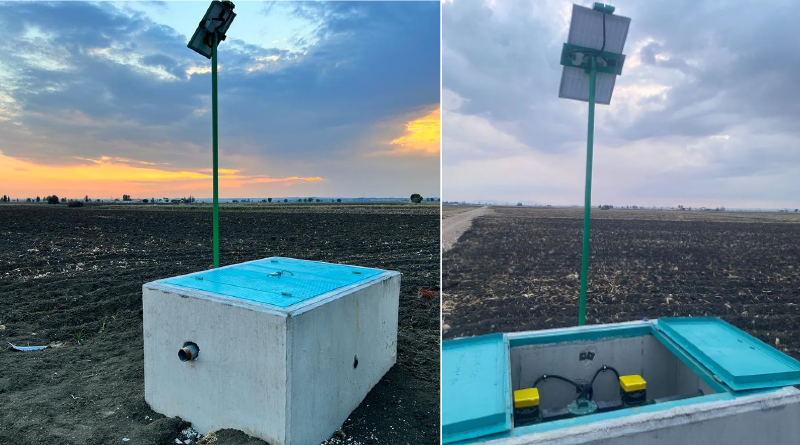

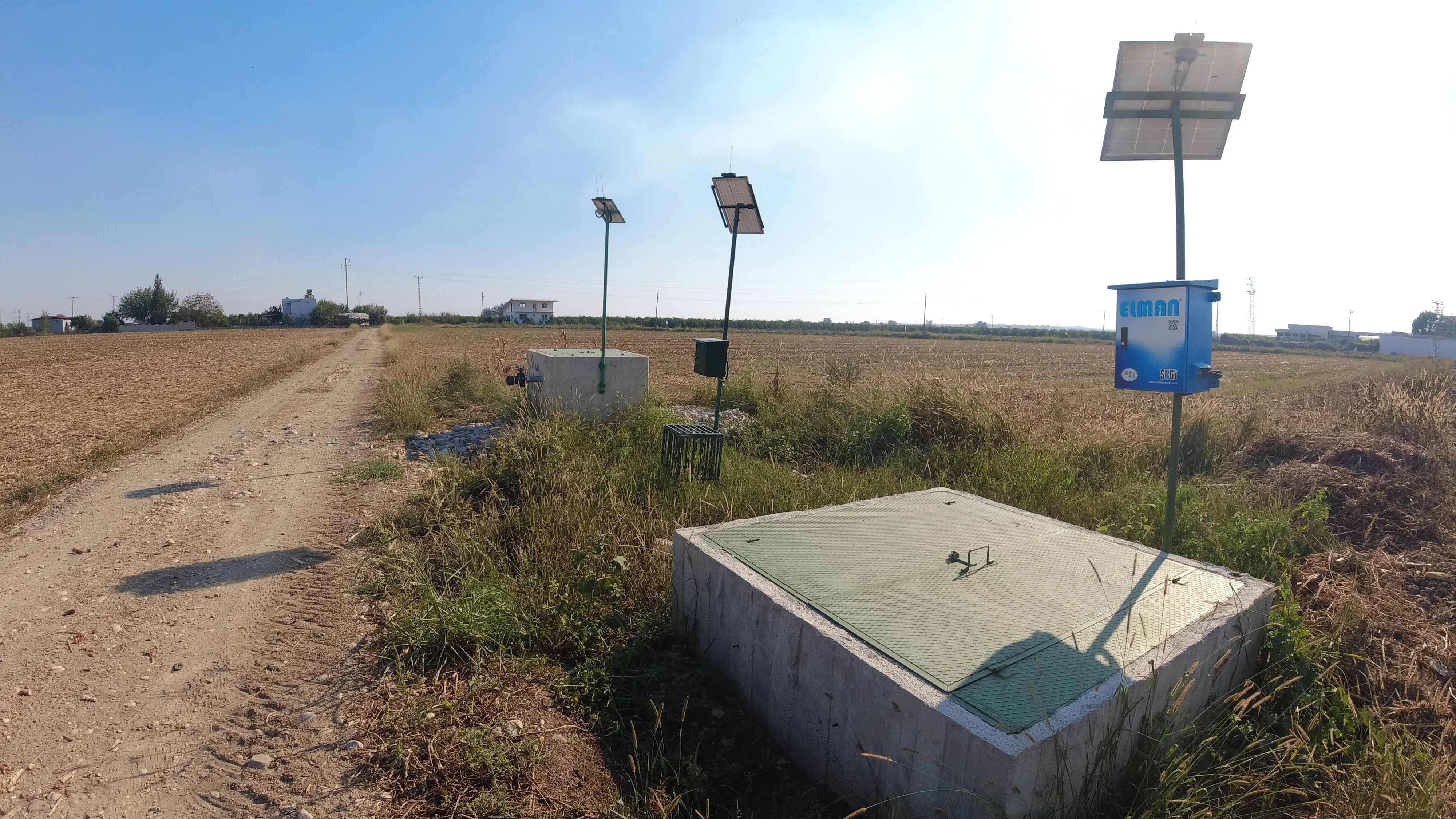

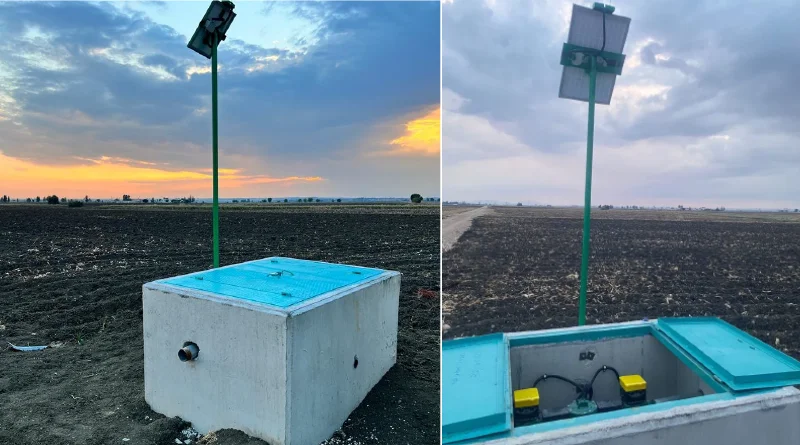

İmamoğlu Irrigation Automation

  • The overall water status is continuously tracked with updated data, ensuring that water management is planned and executed based on real-time information.
  • The water needs and consumption data of each plant are accurately monitored and recorded.
  • Soil moisture levels are continuously tracked based on a six-tier crop pattern, allowing timely and optimal irrigation to enhance yield and conserve water.
  • Sulama şebekesinin ana hattından ayrılan her kolunun başı ve sonunda sürekli olarak izlenir ve takip edilir.
  • By creating an interactive GIS infrastructure with an enriched dynamic structure;
    • Actual usage areas are identified.
    • Real and instant plant pattern tracking and management is provided.
    • It is known where, who, which product, when and how much production is made.
    • Water supply and food supply security is ensured.

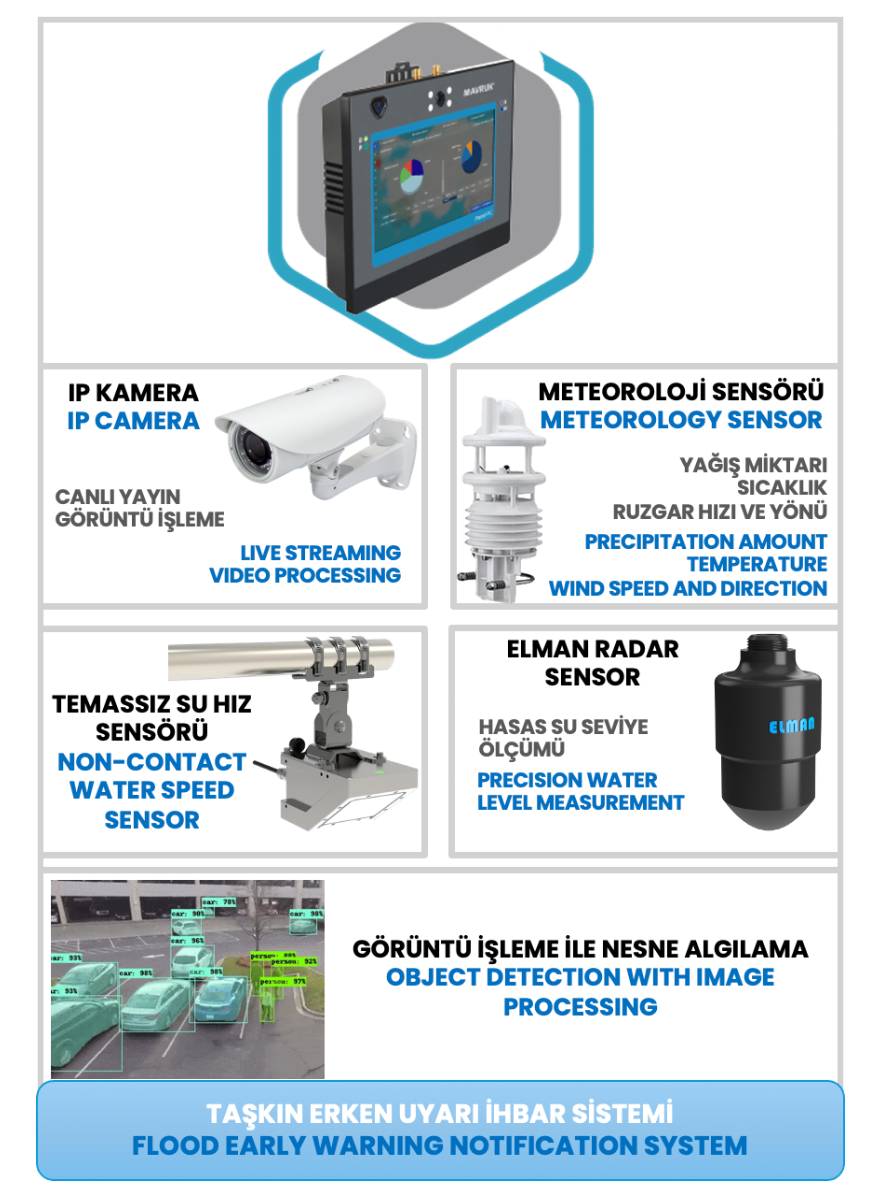

TEUS Flood Early Warning System

  • The data from all interconnected measurement stations is managed from a single center.
  • The data from all interconnected measurement stations are managed from a single central point.
  • It provides supporting alerts to decision-making mechanisms to prevent loss of life and property.
  • Structural integrity and the ability to operate under harsh conditions ensure continuous operation.
  • Critical alerts can be modified by the risk management center based on changing conditions.
  • In case of an alarm, all authorities can be alerted simultaneously.
  • Critical points are supported by cameras, and visual control strengthens the decision support mechanism.
  • By supporting the automation system, it helps to reduce flow load and minimize risks during floods.

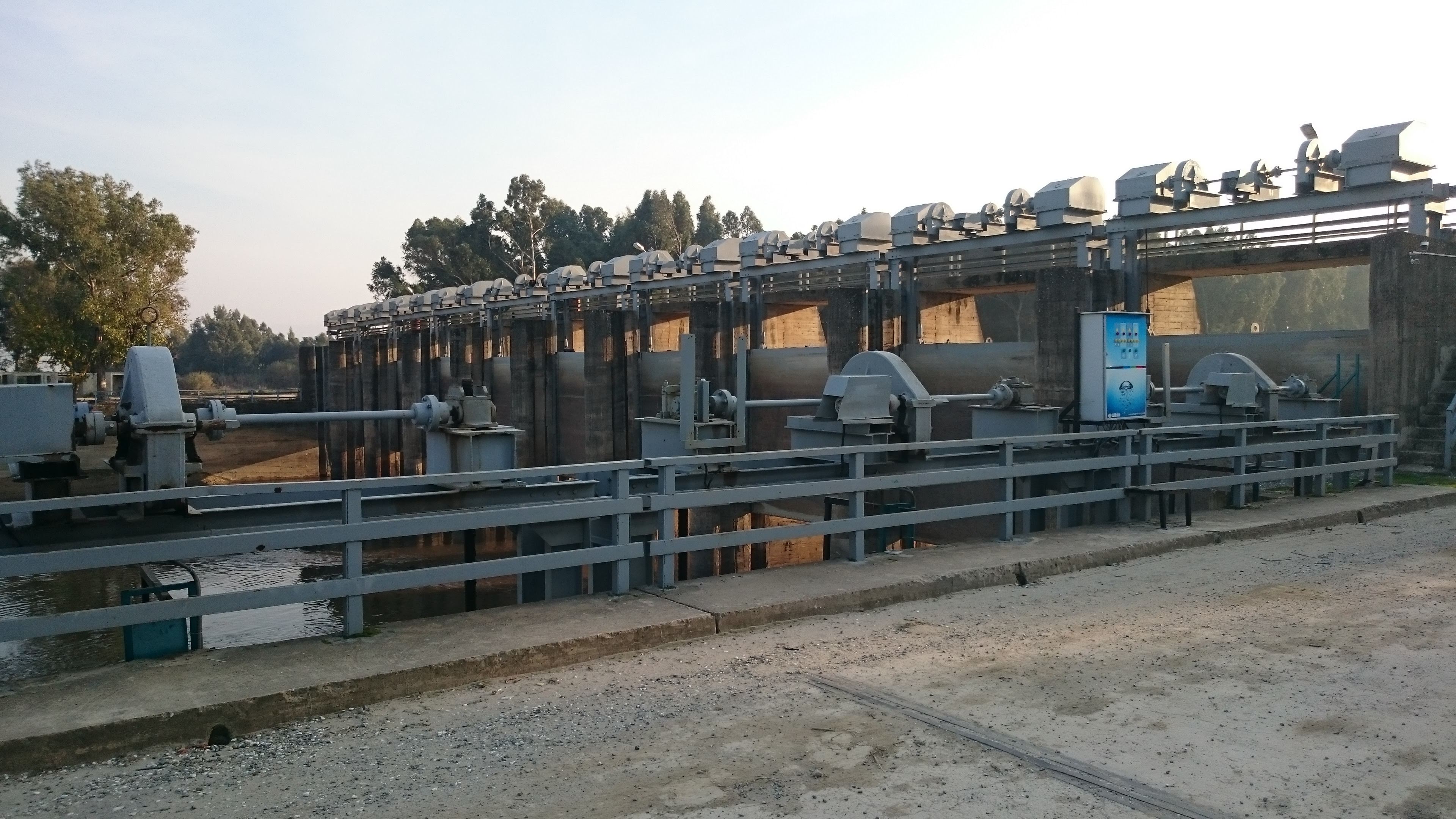

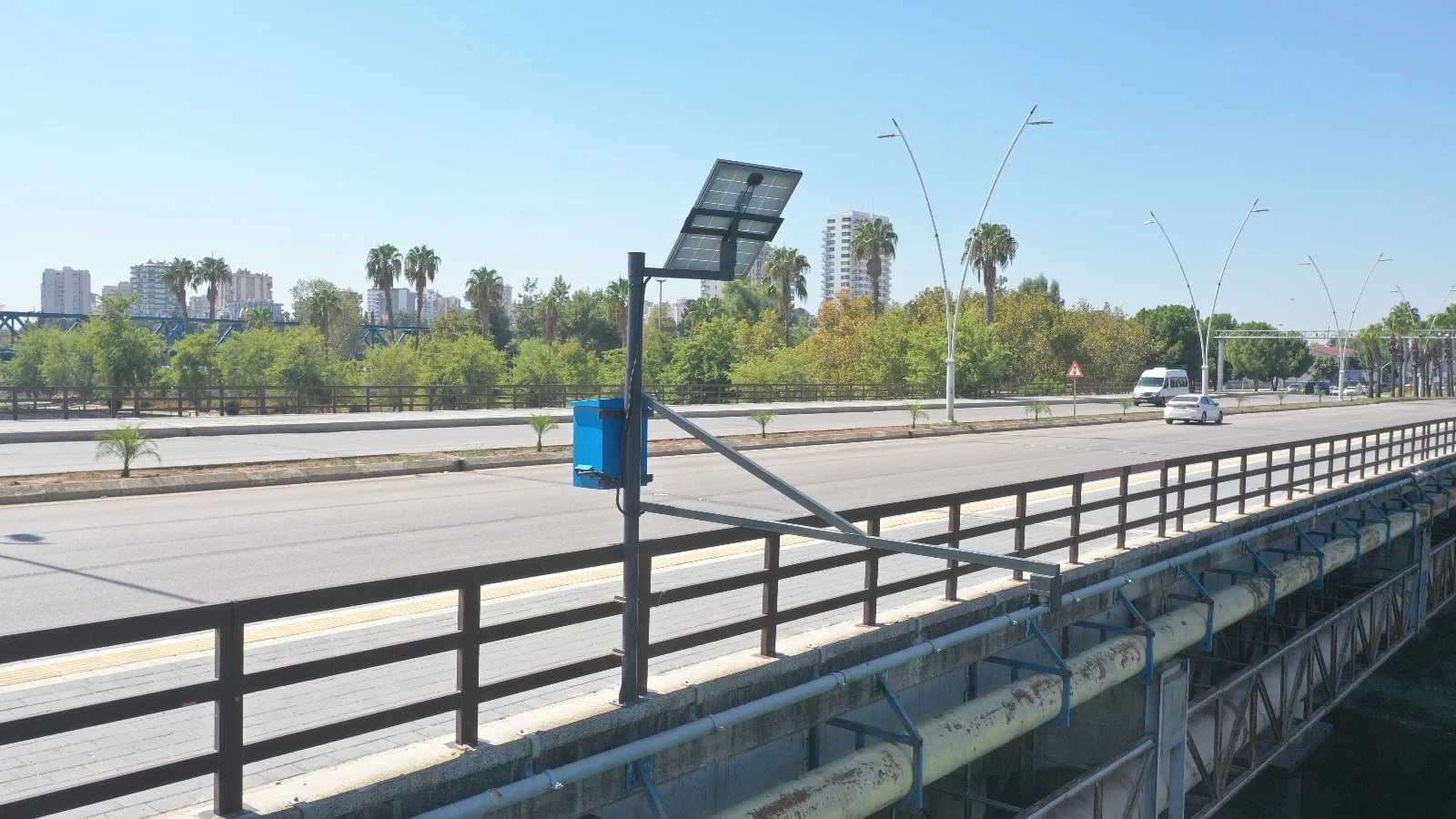

Autonomous Remote Open Channel Management

  • The control and management of regulators, dams, and channel gates are provided through the ESYS (Electronic Water Management System).
  • The water budgets of irrigation unions with open irrigation over the last 7 years Despite a 40% decrease Irrigation can still be completed 100% without changing the irrigation areas and crop patterns.
  • As a result of establishing interactive systems with Water Observation Stations (SUGİ) the desired water transition amounts are automatically ensured.
  • By minimizing labor and fuel usage, the annual irrigation union budgets are A savings of over 20% in personnel, fuel, machinery, and time has been achieved.
  • By setting up alarms for gate levels or movements, the movement of gates is monitored 24 hours, preventing potential water leaks.
  • All movements of the gates (manual and automatic) are recorded.

The Spillway Overflow Prevention System at the Derinöz Dam Regulation Reservoir

  • Approximately 2,000,000 m³ of water savings have been achieved compared to previous usage.
  • It has eliminated the need for continuous personnel intervention and control, resulting in savings in vehicles and fuel.
  • It offers continuous irrigation capability, allowing for nighttime irrigation and reducing evaporation losses.
  • Water management has been optimized based on dam level, diversion channel level, and penstock flowrate data.
  • In the closed irrigation system with a vertical elevation difference of 70 meters, air intake has been prevented, avoiding pipe bursts that occurred regularly in previous periods.
  • The system automatically adjusts the valve opening proportionally by analyzing variables.
  • The cone valve opening can be remotely adjusted instantly when required.

mavruk tanıtım

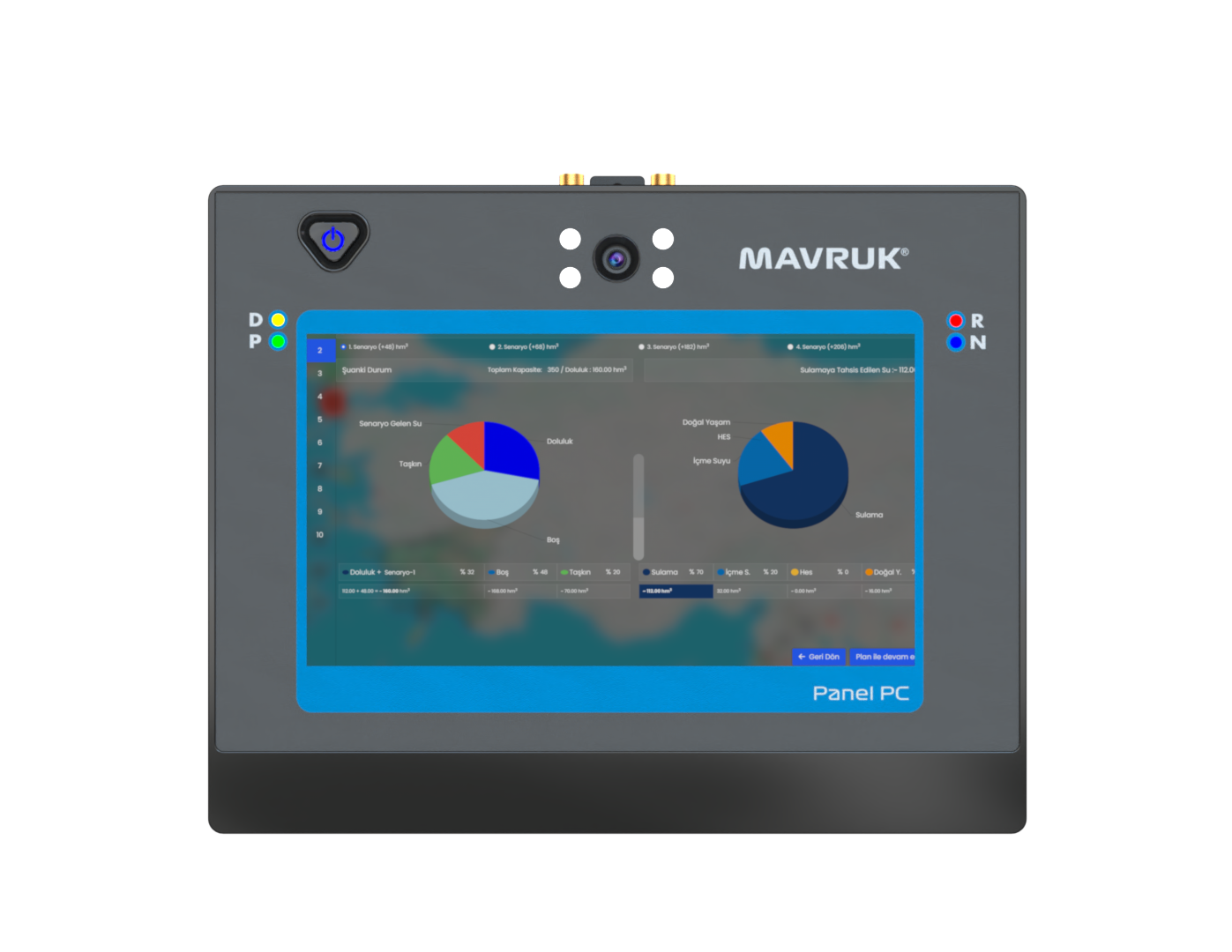

Mavruk Hardware Capabilities

  1. Embedded 2G/4.5G GSM Module (Modular structure may vary depending on requirements).
  2. Embedded 8MP Camera and LEDs
  3. 3S 18.650 mA DC battery
  4. 4-20 mA Universal Interface Support
  5. HDMI, USB, TYPE-C, and RJ45 PoE Socket Inputs
  6. Simultaneous use of RS485 ModBus RTU/TCP
  7. 5km+ Communication with RF Lora Embedded Module
  8. 5″ – 7″ – 10.1″ Capacitive Touch Screen
  9. Pluggable PCB Connector
Processor
64 bit quad-core 1.5 GHz ARM
eMMC Memory
16GB, 32 GB ve 64GB
RAM
2GB, 4GB ve 8GB LPDDR4
Operating System
Linux
Display
5'' - 7'' - 10'' Kapasitif Dokunmatik Ekran
WiFi
2.4 GHz, 5 GHz IEEE 802.11 b/g/n/ac
Bluetooth
5.0, BLE
USB Type-A
2 Adet
USB Type-C
1 Piece
Logic Input (10-32V)
4 Adet
Logic Output (10-32 V)
4 Adet
HDMI Output
1 Piece
Ethernet
PoE RJ45 Giriş
4-20 mAh Input
3 Pieces 16 Bit
RS485 Modbus
2 Adet
GSM Modem
CAT 4 LTE
GSM anten çıkışı
Patch Antenna - SMA Connector
Internal Battery
5000 mAh
Operating Voltage Range
10-24 V
Operating Temperature
-20°C / +60°C
Programming
Java, JavaFX, Python, PHP, NodeJS, Shell
Database
SQLite, MySQL, MariaDB, PostgreSQL
Uzaktan erişim
RDP, SSH, VNC, MQTT
Web Browser
Chromium, Mozilla Firefox
Internal Security Camera
1 x 8 MP

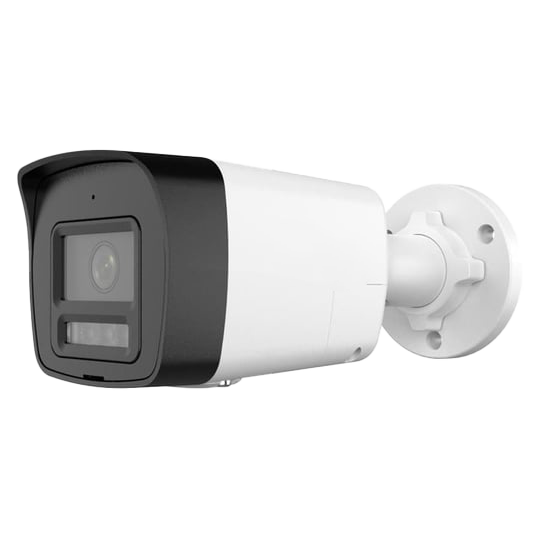

Connectable External Camera
IP Bullet ve Dome
Live broadcast
HLS, RTSP
Image Processing Capacity
Codec H.264 / H.265
Record Performance
25 fps
PCI Express (Optional)
GPUs (Graphics Cards), SSD, Multimedia (A/V) and sound cards, SATA cards and storage
Protection Class
IP68
Optional Communication
I2C, TTL, RS232
AI (Artificial Intelligence)
13 TOPS
Keyboard-Mouse
Compatible
Fault and Warning Notification
Sms, Mobile Application
LoRa RF
Internal on Motherboard (ONBOARD)
LoRa RF Coverage Range
5 km+
LoRa RF Band Range
433/868 MHz
LoRa RF Data Transfer Rate
1.2kbps - 115.2kbps
LoRa RF Sensitivity
-139dBm
LoRa Maximum Power Output
100mW (20dBm), 2-20dBm
LoRa RF Antenna Output
Patch Antenna - SMA Connector

All features may vary depending on production. It is not binding.
