Sugi®

Thanks to its All-in-One structure, we have minimized and integrated all devices such as the Panel, Battery, Charge Regulator, Datalogger, Modem, RF Lora, and Radar from the water monitoring stations into a single waterproof device.

Wi-Fi
Wi-Fi
2.4 GHz 802.11 b/g/n

Bluetooth
Bluetooth
5.0, BLE

Hafıza
Storage
A2 SD Support up to 128 GB

İşlemci
Processor
32 bit dual-core ARM
Ekran
Display
128 x 64 LCD
Koruma sınıfı
Protection Class
IP68
Scroll Down
deg
sugi

All-in-One (AIO) Water Monitoring Station

Thanks to its All-in-One structure, we have minimized and integrated all devices such as the Panel, Battery, Charge Regulator, Datalogger, Modem, RF Lora, and Radar from the water monitoring stations into a single waterproof device. It is a mini smart device that meets the IP68 “water and dust proof” standard. It provides reliable protection against sabotage attempts by being mounted discreetly in places where measurements will be made (such as under bridges). In this way, the security and continuity of measurement data is ensured at the maximum level. It has the capacity to operate many sensors with multiple parameters simultaneously and is equipped with alternative communication capabilities that can adapt to harsh field conditions.

sugi

Operating many sensors with multiple parameters simultaneously

Water and dustproof, providing IP68 protection. With all components (battery, modem, RF, datalogger, sensor, external environment, etc.) integrated and its mini-compact design, it can be installed in discreet locations, such as under bridges.

2G-3G-5G GSM, RF Smart Lora, Wi-Fi, Bluetooth gibi dahili, alternatifli haberleşme destekleri mevcuttur. Birden fazla sensör ile birden fazla parametre aynı anda çalışabilir.Başka bir otomasyon sistemine entegre olabilir ve koşullu beraber çalışma senaryoları kurgulanabilir.

Alarms can be defined for each value and user based on different levels and amounts. The internal rechargeable battery allows for at least one week of measurement and observation in case of power loss. The Stand-By mode provides longer operation by adjusting the transmission frequency without requiring charging.

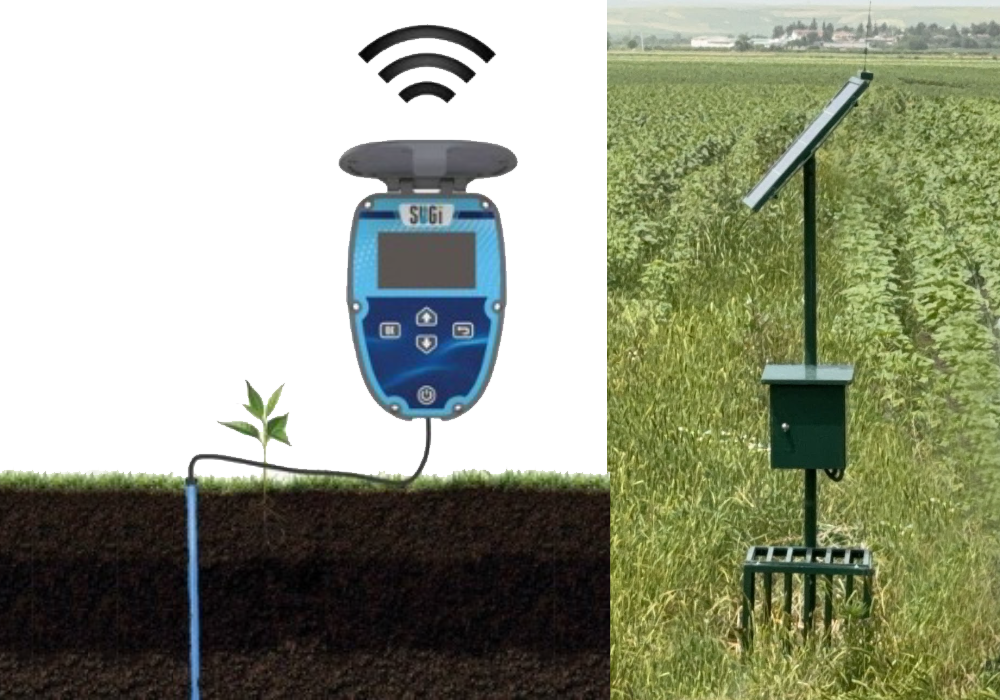

For water observation stations; It measures and records multiple parameters of different sensors such as level, flow rate, EC, temperature, pH, turbidity, quality and sends them transparently or processed to the remote server. For soil observation stations; It measures more than one of different sensors for multiple parameters such as gradual humidity and temperature, records it and sends it transparently or processed to the remote server.

For air observation stations, multiple parameters such as air quality, forecast, and multi-parameter meteorological sensors are measured, recorded, and the data is transmitted transparently or processed to a remote server.

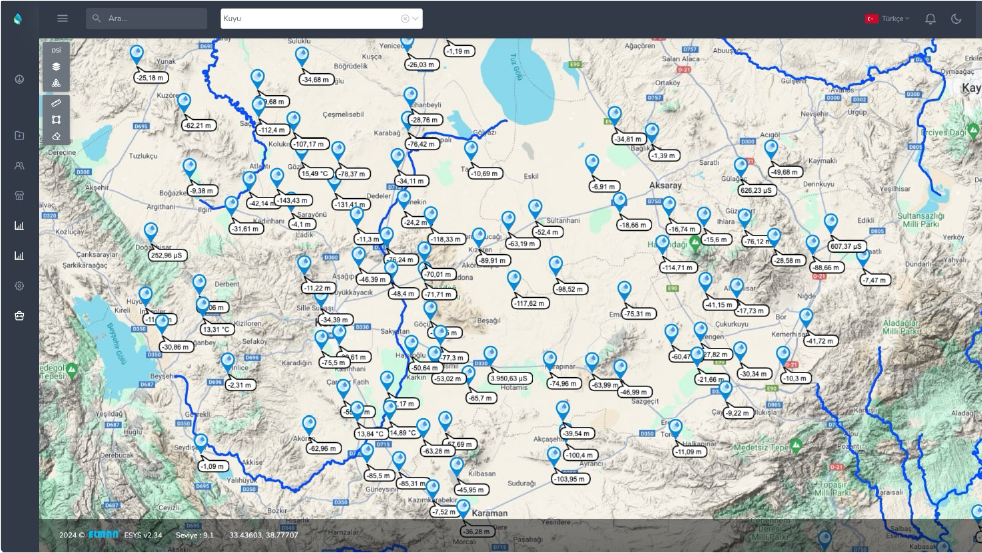

harita

The level and volume of water to be used for both drinking and agricultural purposes are measured and monitored in real-time, recorded, and transmitted. The control of every drop of water is ensured, and the location, time, and quantity of water are continuously tracked. This enables the management and planning of water based on real data. The monitoring and analysis capacity of water is enhanced through the integration of various sensors, including a 3-parameter sensor, meteorological sensor, and water quality measurement sensor.;

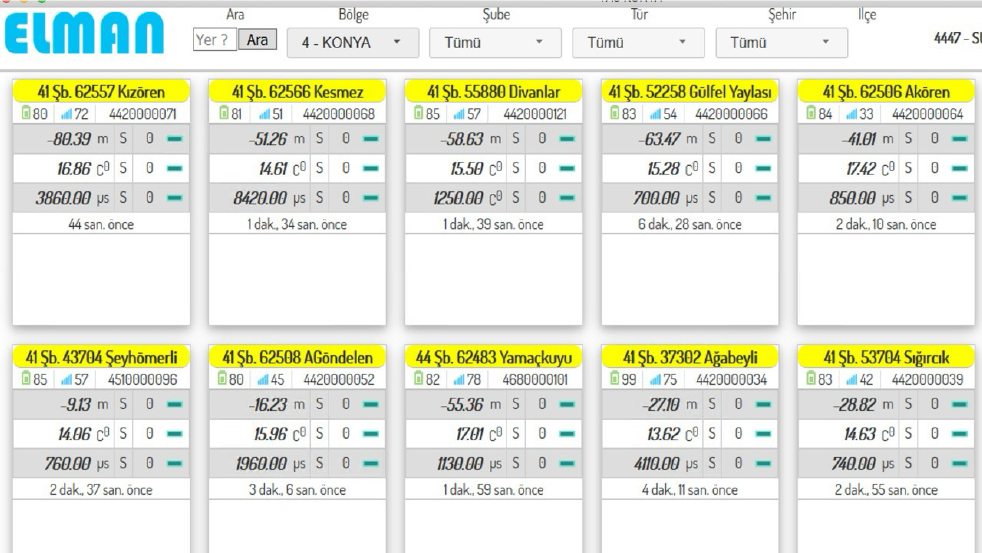

Tesis ARC Liste

As a first in Türkiye, this system measures water level, water temperature, and water conductivity online in order to manage our water resources more efficiently. The system is monitored and analyzed based on real-time data. In addition to the existing system, the monitoring and analysis capacity can be enhanced by equipping it with various sensors such as GPS sensors and antennas, UV nitrate sensors, earthquake sensors, and meteorological sensors. Furthermore, uninterrupted energy is provided through solar power, ensuring continuous data flow, and remote control and data management are facilitated via GSM network.

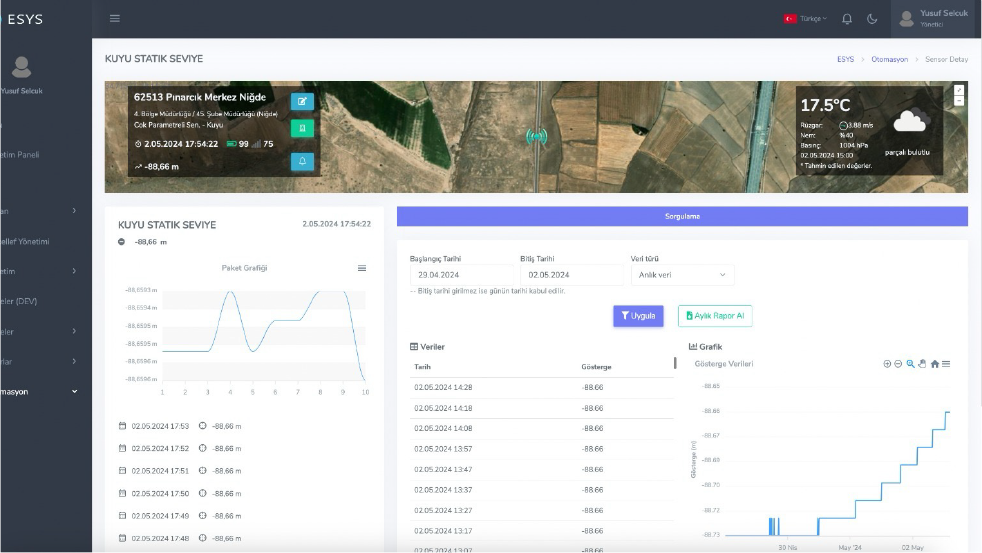

ESYS

Water supply and security are ensured. All stations can be monitored from a single screen, and station data is continuously and automatically updated. All data is recorded chronologically and can be analyzed over selected time intervals. The system operates on cloud servers, and with mobile application integration, data tracking and analysis can be easily performed via smart devices such as phones, tablets, and computers.

e

SUGI station on rotary mechanism

Multiple sensors for parameters such as level, flow, EC, temperature, pH, turbidity, and quality are used to measure, record, and transmit data in a transparent or processed form to a remote server, optimizing the data collection process in the field. The design of the rotary mechanism provides ease of installation, maintenance, and repair. With all components (battery, modem, RF, datalogger, sensor, external environment, etc.) integrated into a mini-compact structure, the station can be easily installed in inconspicuous locations, such as under bridges. This provides additional protection against potential sabotage and theft attempts.

Processor
32 bit dual-core ARM
Storage
A2 SD Support up to 128 GB
Display
128 x 64 LCD
WiFi
2.4 GHz 802.11 b/g/n
Bluetooth
5.0, BLE
USB Type-C
1 Piece
Digital Input (10-32V)
2 Adet
Digital Output (10-32V)
2 Adet
4-20 mAh Input
2 Adet 16 Bit
RS485 Modbus
1 Piece
GSM Modem
2G GSM Module Built on Motherboard (ONBOARD)
GSM anten çıkışı
Patch Antenna - SMA Connector
Internal Battery
5800 mAh
Operating Voltage Range
10-32 V
Operating Temperature
-40°C / +70°C
Protection Class
IP68
Uzaktan erişim
MQTT, HTTP Web Arayüzü (WiFi Connection)
Data Recording and Sending Interval
1’, 5’, 10’, 15’, 30’ and 60’ minutes and their multiples
Data Packaging and Infrastructure
HTTP GET/POST Methods in JSON (Object) Format REST API
Membrane Switch Control Keys
5 adet (1- On/OFF, 2- Yön Tuşu, 1- İleri, 1- Enter)
Communication Standardization
FCC, ETSI
Sleep Mode Current
5 uA
LoRa RF
Internal on Motherboard (ONBOARD)
LoRa RF Coverage Range
5 km+
LoRa RF Band Range
433/868 MHz
LoRa RF Data Transfer Rate
1.2kbps - 115.2kbps
LoRa RF Sensitivity
-139dBm
LoRa RF Maximum Power Output
100mW (20dBm), 2-20dBm
LoRa RF Antenna Output
Patch Antenna - SMA Connector
Indication and Usage
HTTP Web Arayüzü

All features may vary depending on production. It is not binding.
