SmartCam

You no longer need complex systems for remote management, and in addition to multi-camera and multi-sensor support, it comes with Artificial Intelligence support.

AI
AI
13 TOPS

Bluetooth
Bluetooth
5.0, BLE

Dahili Hafıza
Internal Memory
16GB, 32GB VE 64GB eMMC

SSD
SSD
512 GB+
Ram
Memory
2GB, 4GB ve 8GB LPDDR4
İşlemci
Processor
64 bit quad - core 2.4 GHz ARM
Scroll Down
deg

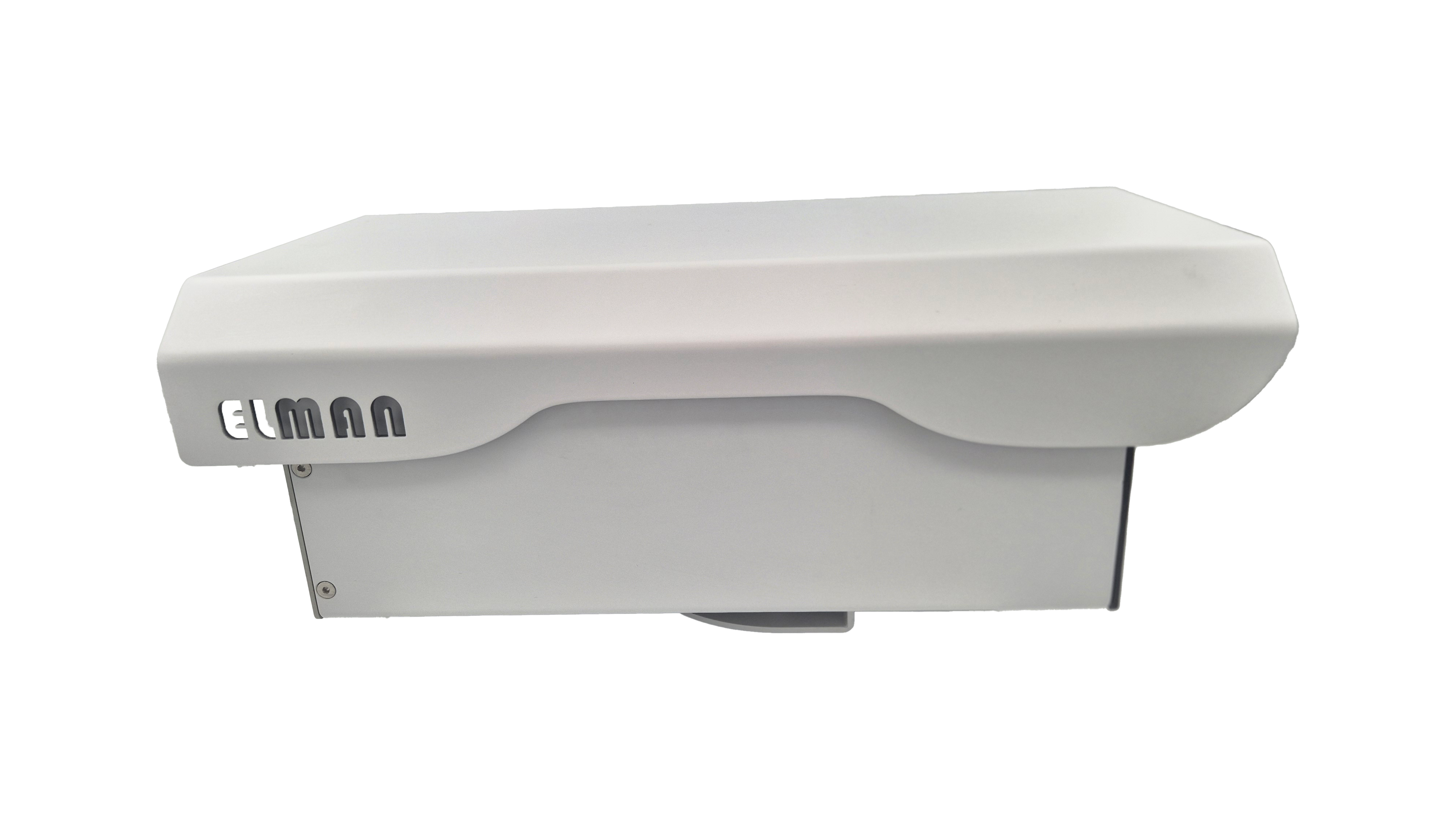

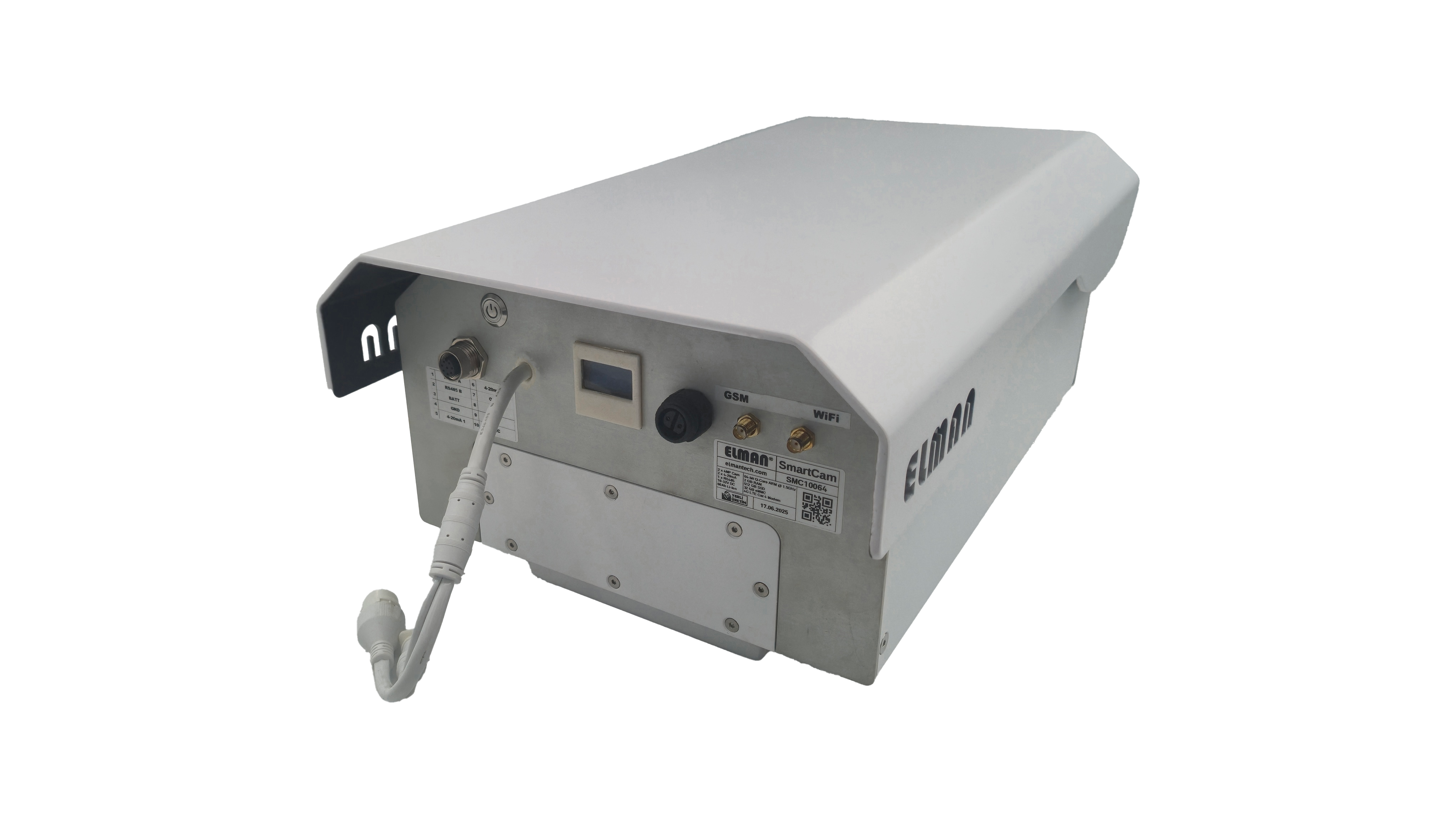

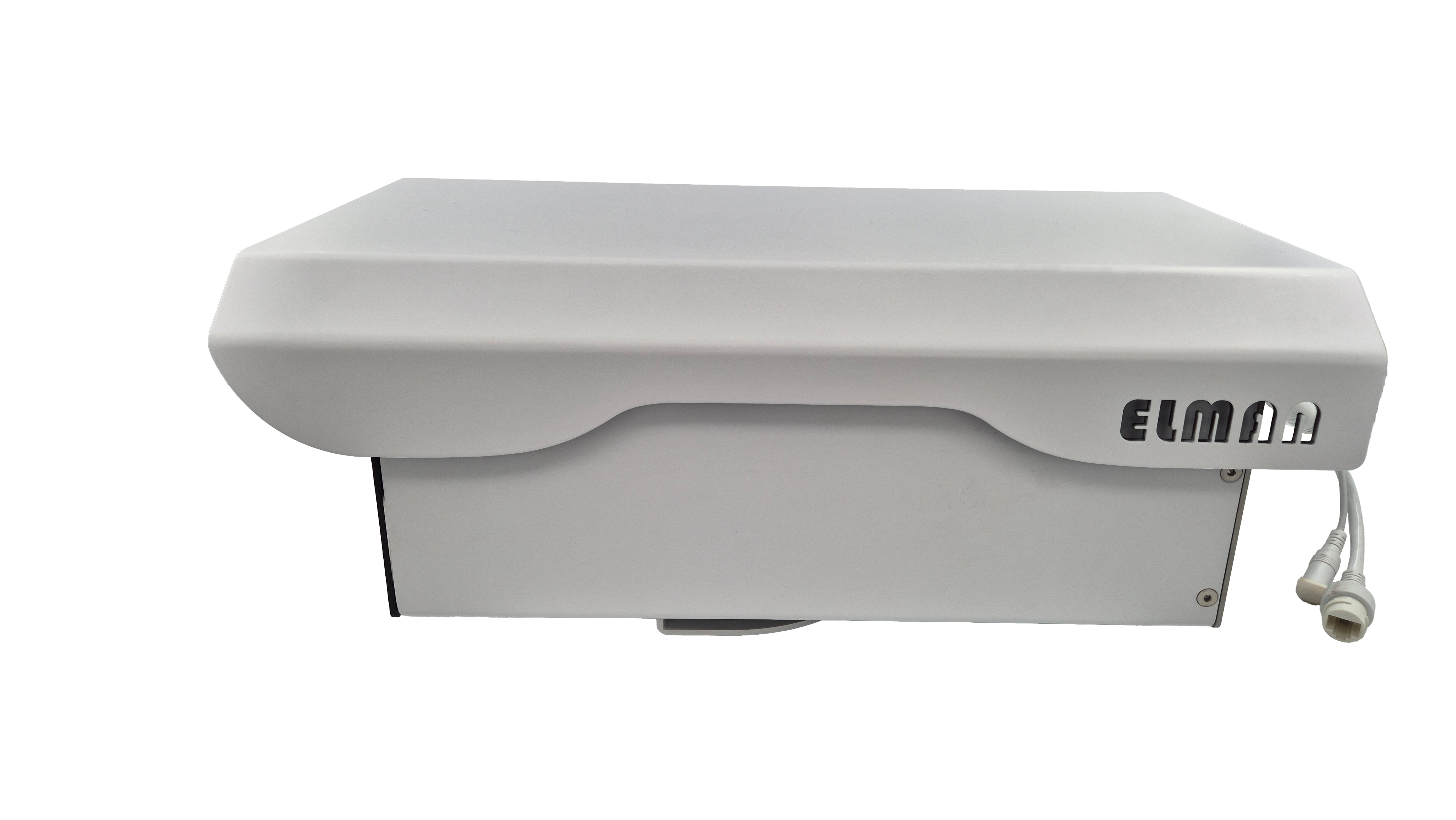

SmartCam

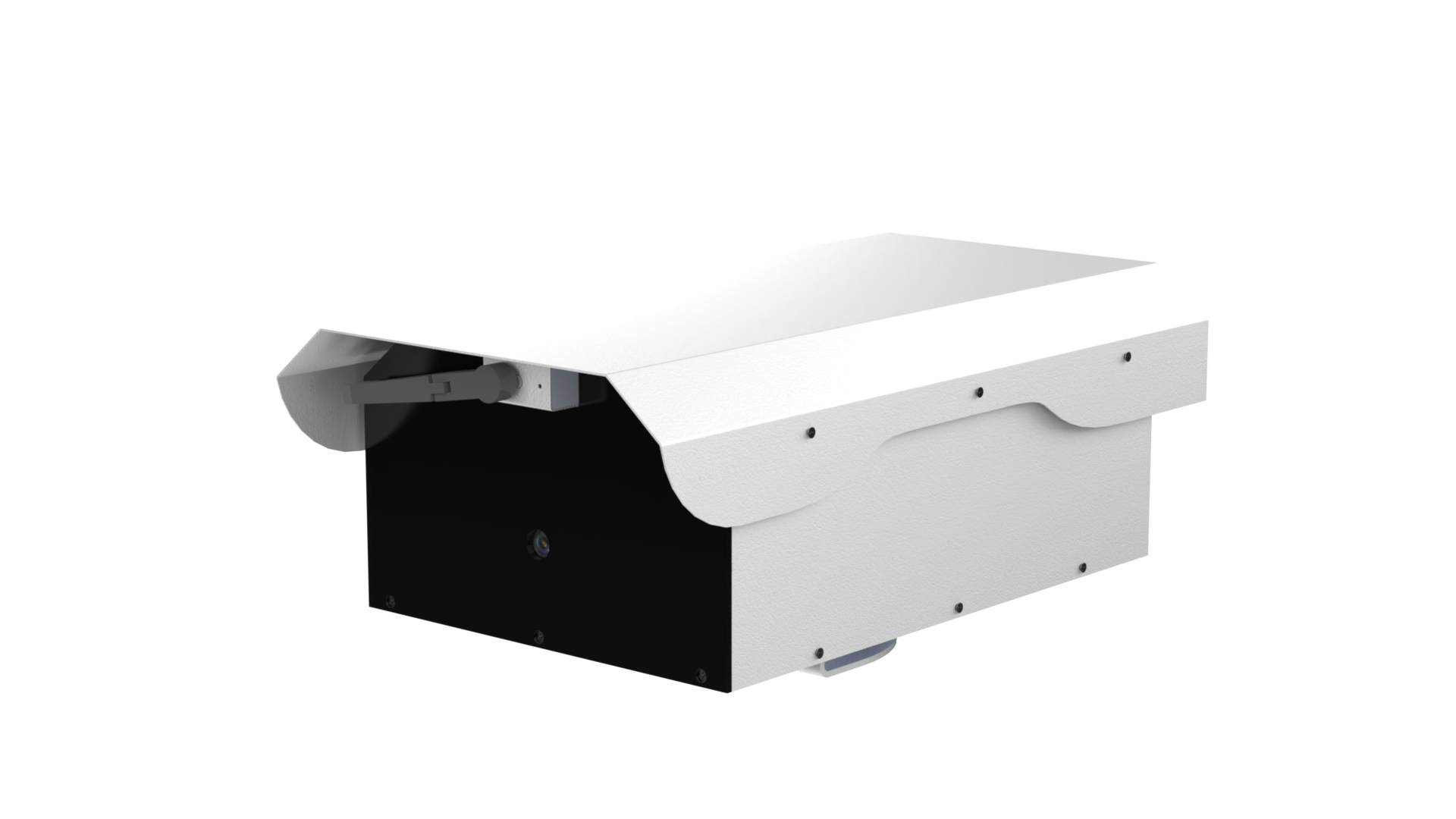

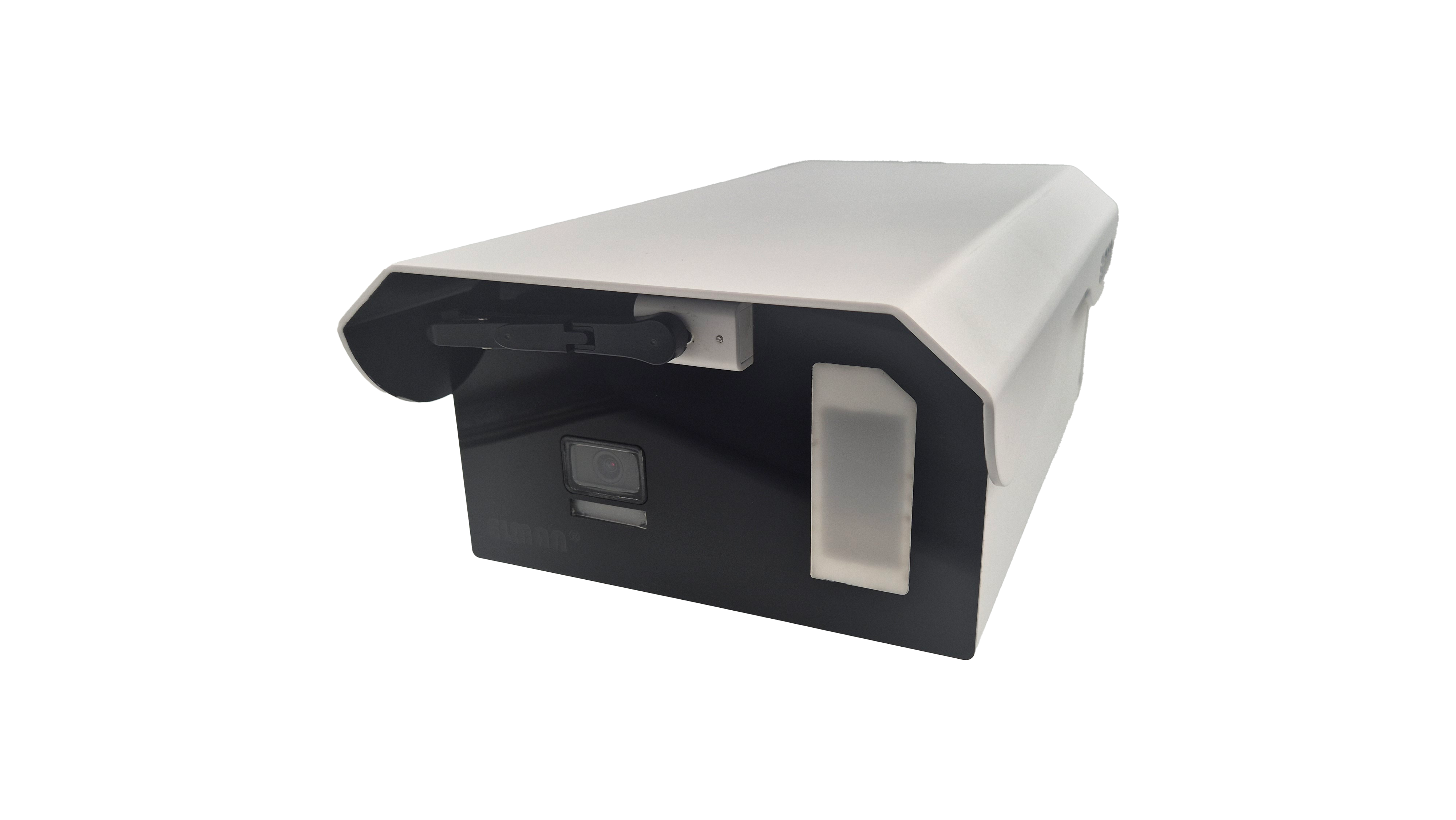

Smartcam®

All-in-One Camera

All-in-One
Preventing loss of life and property is within our reach. The first one successfully implemented Flood Early Warning System (FEWS), tasarlanırken proje aşamaları ve saha uygulamaları, SMARTCAM® It has been the most important source of inspiration for As it is an industrial PC, it is different from other cameras in that, AI-supported sensors and offers remote management capabilities through bidirectional data traffic. We are presenting this product with its internal battery as a locally produced solution.


Integrated and Ergonomic Designed with an integrated system combining new technology hardware and software, SMARTCAM® minimizes installation errors such as equipment incompatibility and connection issues, maximizes hardware compatibility, reduces human errors, and supports high-efficiency, uninterrupted system management.

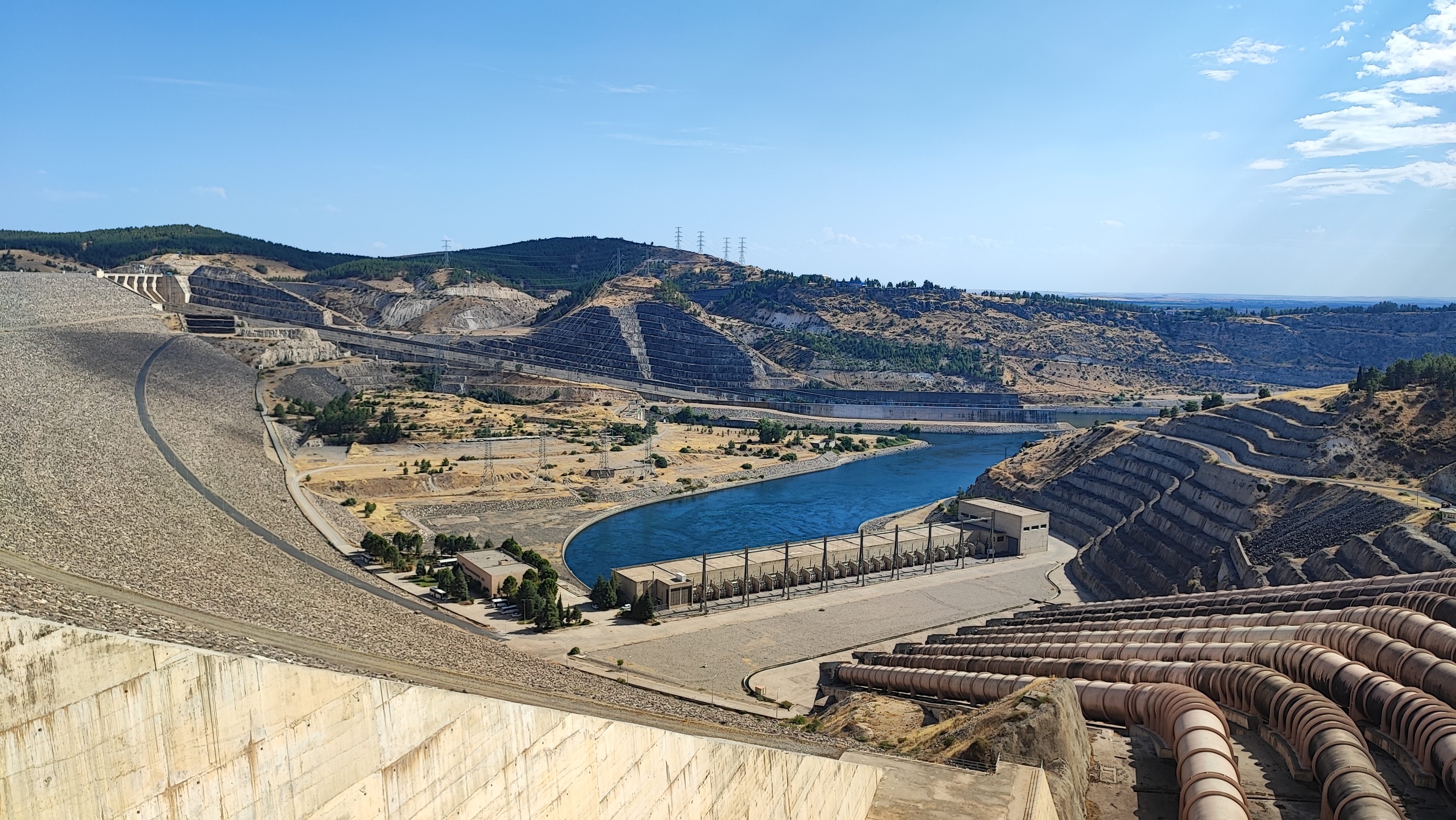

Seyhan Regülatör

Realistic and Professional You can focus on your work; when your set alarms are triggered by threshold values, your algorithmic commands are executed, and you will receive approval notifications if requested. In situations that truly carry risks or require remote intervention, SMARTCAM® will be your greatest assistant. This is because the live connections from the cameras in the field support you in making accurate decisions and facilitating real-time intervention.

product-5

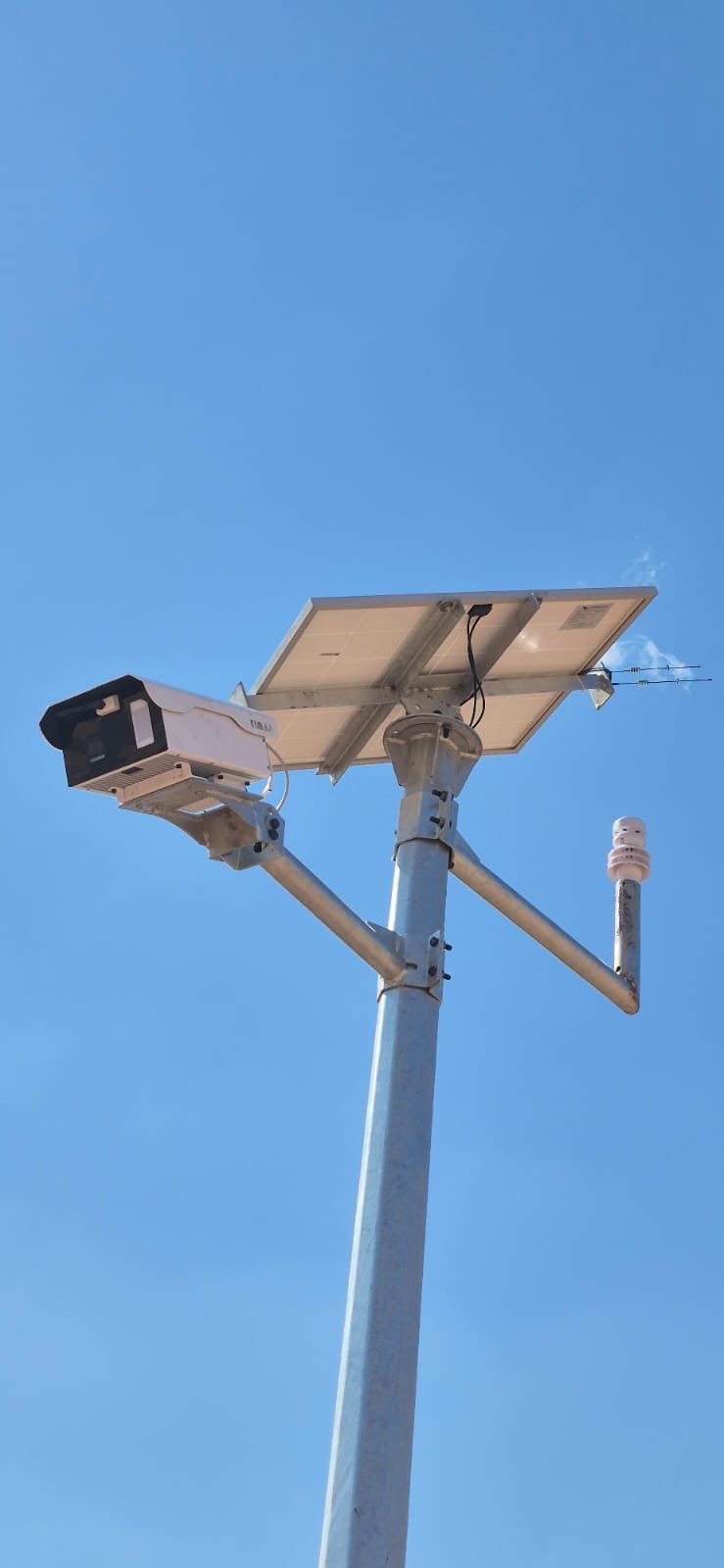

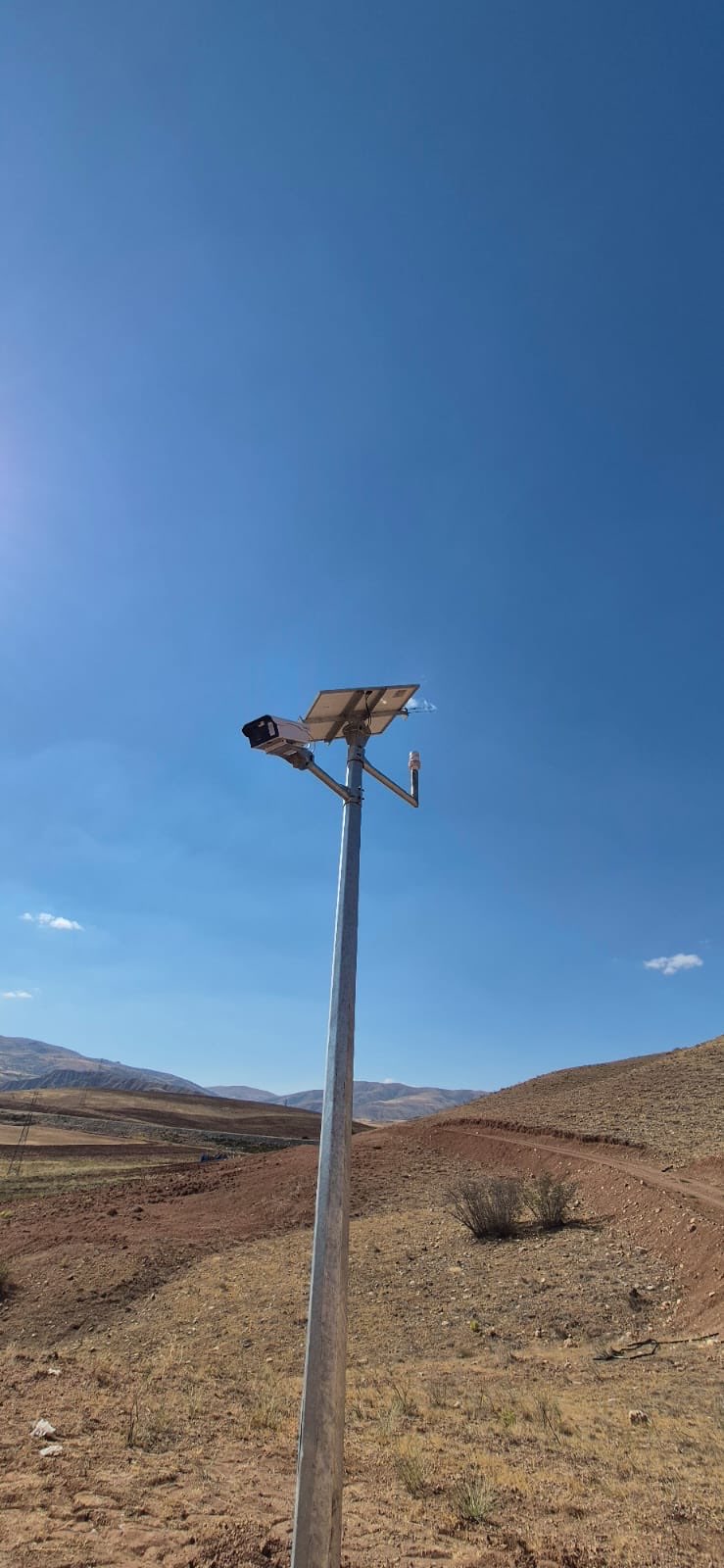

Durable and Powerful Designed with an integrated structure to withstand harsh field conditions, SMARTCAM® transmits a wide range of sensor data across multiple parameters to all relevant centers simultaneously. Its powerful battery pack ensures system operation and continuous communication even in adverse weather conditions. It meets industrial standards for both cameras and automation.

SmartCam Kullanıldığı Projelerimiz

Seyhan Dams Automation

  • It is a project that covers the upstream and downstream controlled autonomous regulator and gate management of Seyhan, Çatalan, and Yedigöze Dams.
  • Under the principles of upstream and downstream controlled water management, all water inflows and outflows have been brought under control.

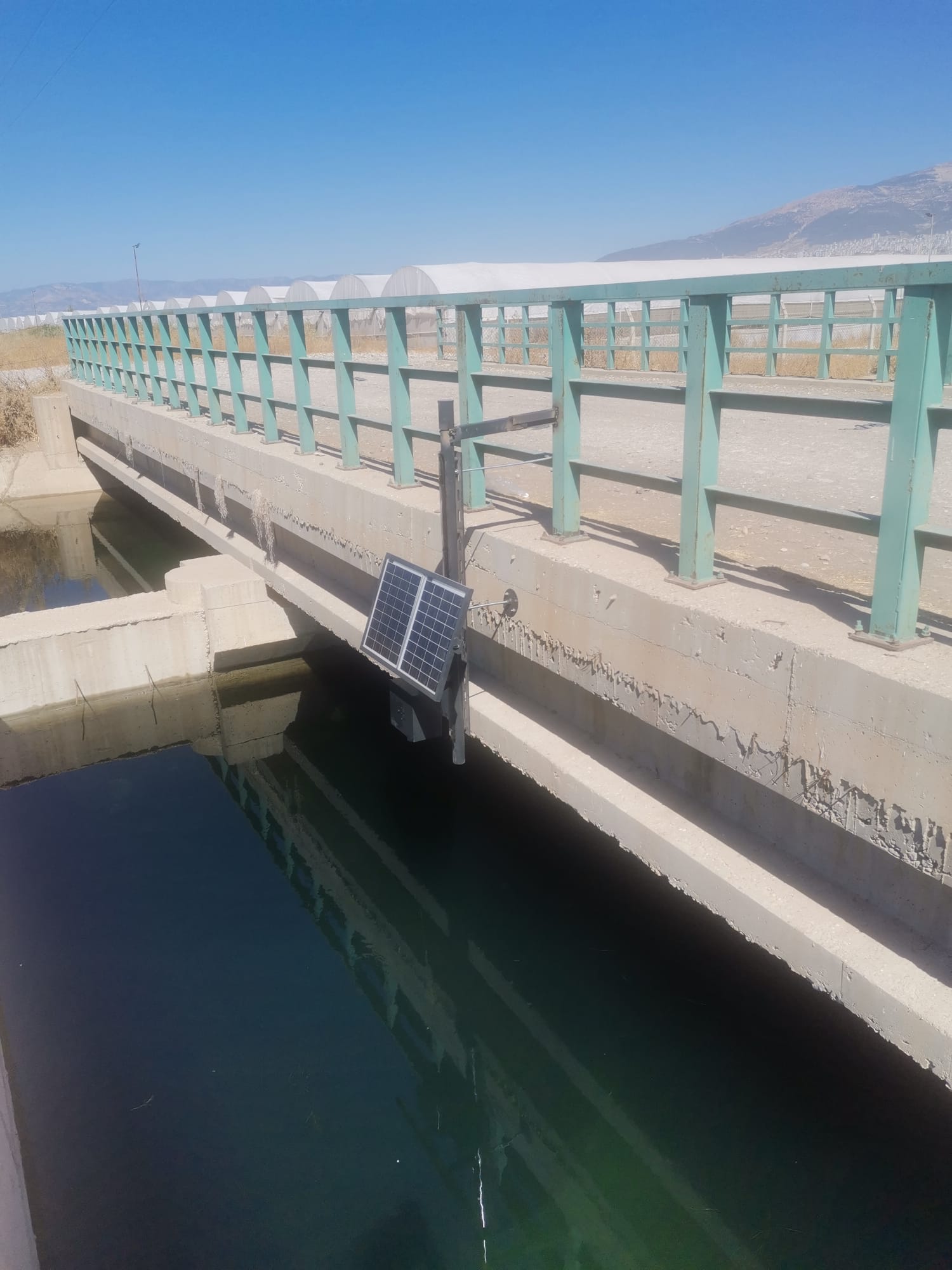

  • At all measurement points, non-contact water level stations provide real-time data to the system.
  • The Elman Radar has been activated for the measurement of the rivers feeding the dams, lake level, and the level measurements of the transmission canals for irrigation unions.
  • Through SCADA system integration, the system operates synchronously for flood mode and the management of water transmission channels. Information about where, who, which product, when, and how much is produced can be obtained.
  • Timely reflection of data and algorithmic support have ensured success in ensuring water and food supply security.

Kılavuzlu Main Canal Automation

  • The data from all interconnected measurement stations is managed from a single center.
  • The data obtained from measurement facilities is monitored by an AI-powered application.
  • All gates are moved by the required amount according to the defined flow rate in a ceremonial manner.
  • Critical alerts can be modified by the risk management center based on changing conditions.
  • In case of an alarm, all authorities can be alerted simultaneously.
  • When an alert is received from the earthquake-sensitive Sismologger device, the predefined emergency scenario is triggered.Even if communication is cut off within the defined authority framework, gate commands are immediately executed according to the risk plan.

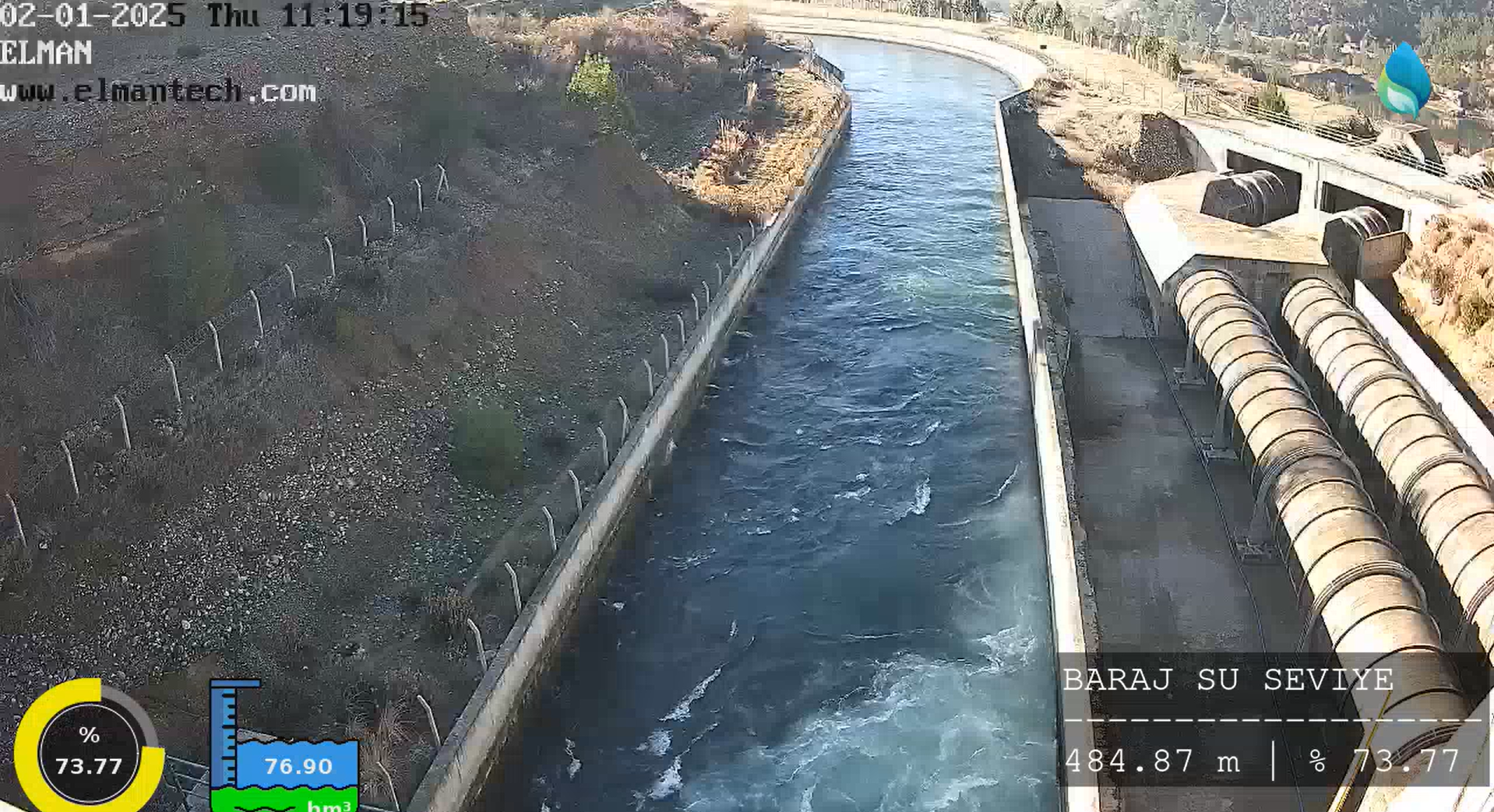

  • Critical points are supported by cameras, and visual control strengthens the decision support mechanism.
  • By supporting the automation system, it helps to reduce flow load and minimize risks during floods.
Processor
64 bit quad-core 2.4 GHz ARM
eMMC Memory
16GB, 32 GB ve 64GB
SSD Memory
512 GB+
RAM
2GB, 4GB ve 8GB LPDDR4
Operating System
Linux
Display
128 x 64 OLED
WiFi
2.4 GHz, 5 GHz IEEE 802.11 b/g/n/ac
Bluetooth
5.0, BLE
USB 3.0 Type-A
2 Adet
USB 3.0 Type-C
1 Piece
Logic Input (10-32V)
2 Adet
Logic Output (10-32 V)
2 Adet
HDMI Output
1 Piece
Ethernet
PoE RJ45 Giriş
4-20 mAh Input
2 adet 16 bit
RS485 Modbus
1 Piece
GSM Modem
CAT 4 LTE
GSM Antenna Output
Patch Antenna - SMA Connector
Internal Battery
30000 mAh
Operating Voltage Range
10-32 V
Operating Temperature
-20°C / +60°C
Programming
Java, JavaFX, Python, PHP, NodeJS, Shell
Database
SQLite , MySQL, MariaDB, PostgreSQL
Remote Access
RDP, SSH, MQTT, HTTP, Web Socket
Web Server
Apache Tomcat
Internal Security Camera
1 x 8 MP
Dahili Kamera
1 x 4 MP, 1 x Termal (OP)

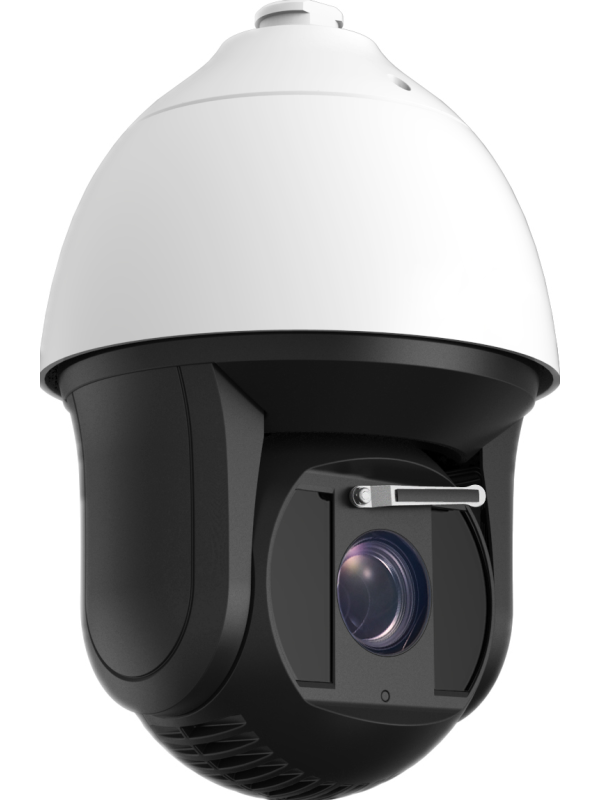

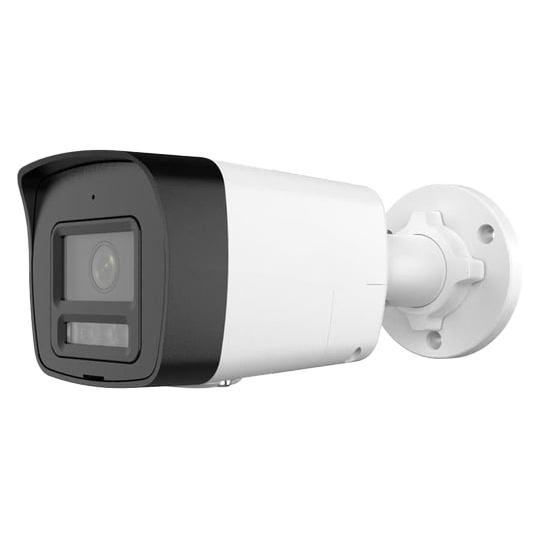

Connectable External Camera
IP Bullet ve Dome
Live broadcast
HLS, RTSP
Record Performance
25 fps
Available Wide Angle Lens
6 mm - 16 mm
Focal Length
3-4 mm
Video Compression
Codec H.264 / H.265
Angle of View
70°
Recording Quality Settings
Customizable
Watermark
Customizable
AI (Artificial Intelligence)
13 TOPS
Wiper
Remote Control and Automatic Rain Detection
Keyboard-Mouse
Compatible
Fault and Warning Notification
Sms, Mobile Application
LoRa RF
Internal on Motherboard (ONBOARD)
LoRa RF Coverage Range
5 km+
LoRa RF Band Range
433/868 MHz
LoRa RF Data Transfer Rate
1.2kbps - 115.2kbps
LoRa RF Sensitivity
-139dBm
LoRa Maximum Power Output
100mW (20dBm), 2-20dBm
LoRa RF Antenna Output
Patch Anten – SMA Konnektör

All features may vary depending on production. It is not binding.
