RDR-20

All-in-One (AIO) Water Monitoring Device. It is used to measure the level of non-contact solid or liquid objects.

GSM
GSM
Optional

Koruma sınıfı
Protection Class
IP68

Wi-Fi
Wi-Fi
2.4 GHz 802.11 b/g/n

Ölçüm Aralığı
Measurement Range
0 - 20 m
İşlemci
Processor
32 bit dual-core ARM
Enerji Girişi
Energy Input
9 - 35 V
Scroll Down
deg
RDR-20

All-in-One (AIO) Water Monitoring Device

It is a mini smart device with an IP68 “water and dust resistance” rating, used for non-contact measurement of solid or liquid levels. It can be discreetly installed in measurement areas to provide reliable protection against sabotage attempts. Supporting advanced universal connection standards, it offers internal and alternative communication options such as 2G, 3G, 5G GSM, RF Smart LoRa, Wi-Fi, and Bluetooth. It can be integrated into other automation systems and allows for conditional operation scenarios. Alarms can be configured for different levels/amounts for each value and user.

RDR-20 Our Projects Using

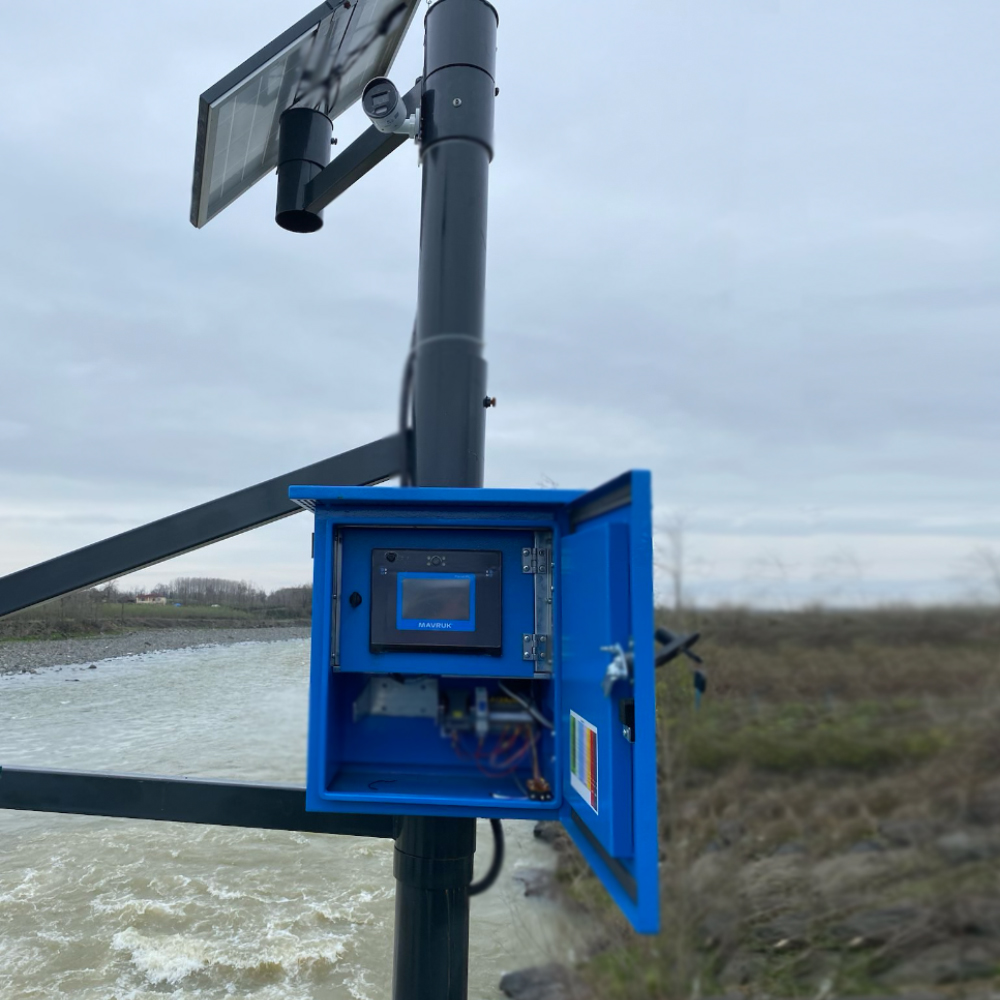

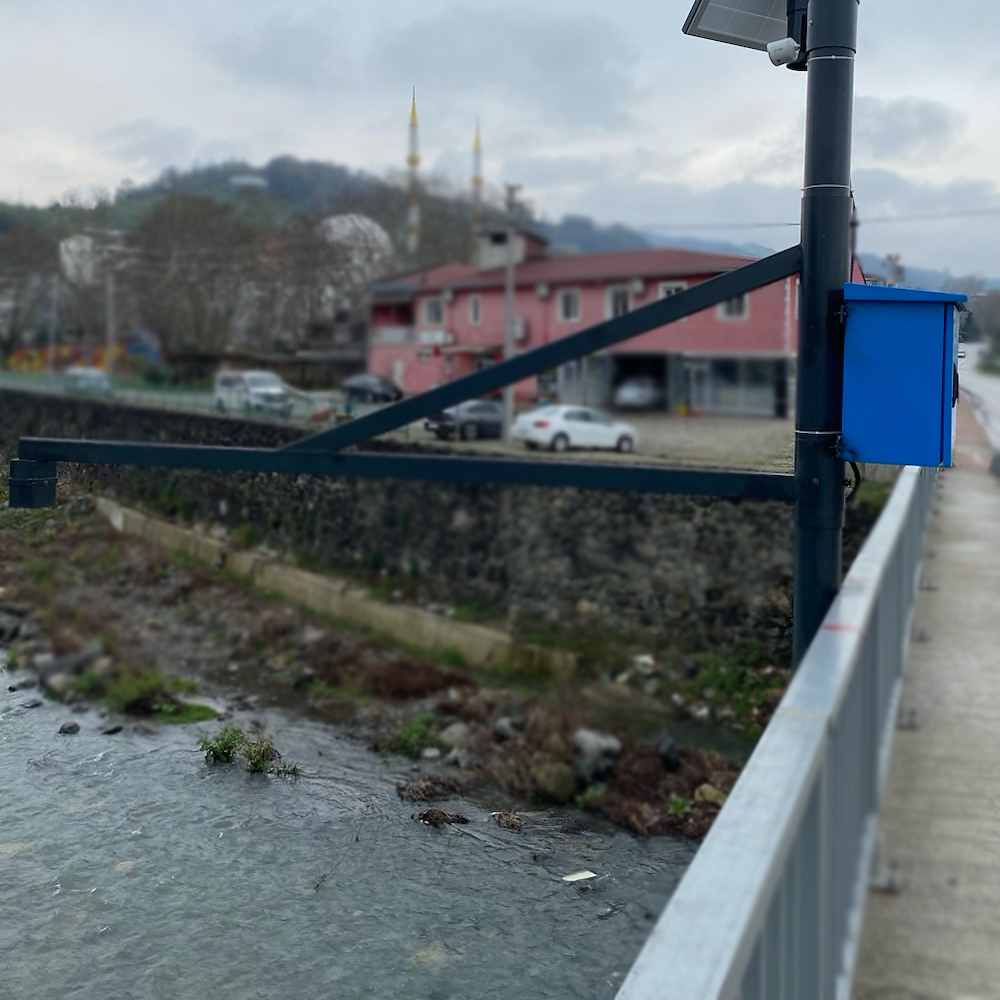

TEUS Flood Management

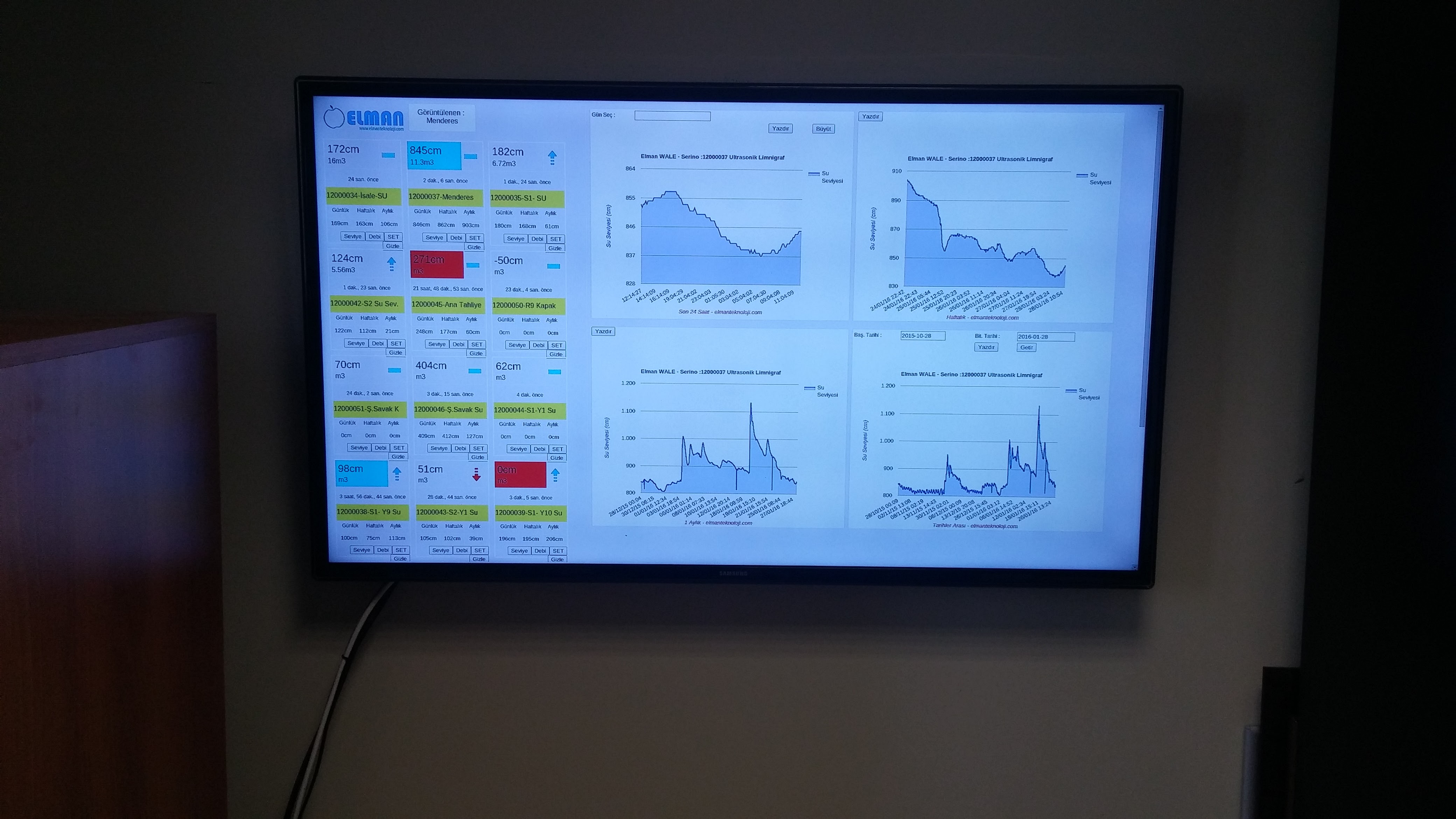

  • The data from all interconnected measurement stations is managed from a single center.
  • The data from all interconnected measurement stations are managed from a single central point.
  • It provides supporting alerts to decision-making mechanisms to prevent loss of life and property.
  • Structural integrity and the ability to operate under harsh conditions ensure continuous operation.
  • Critical alerts can be modified by the risk management center based on changing conditions.
  • In case of an alarm, all authorities can be alerted simultaneously.
  • Critical points are supported by cameras, and visual control strengthens the decision support mechanism.
  • By supporting the automation system, it helps to reduce flow load and minimize risks during floods.

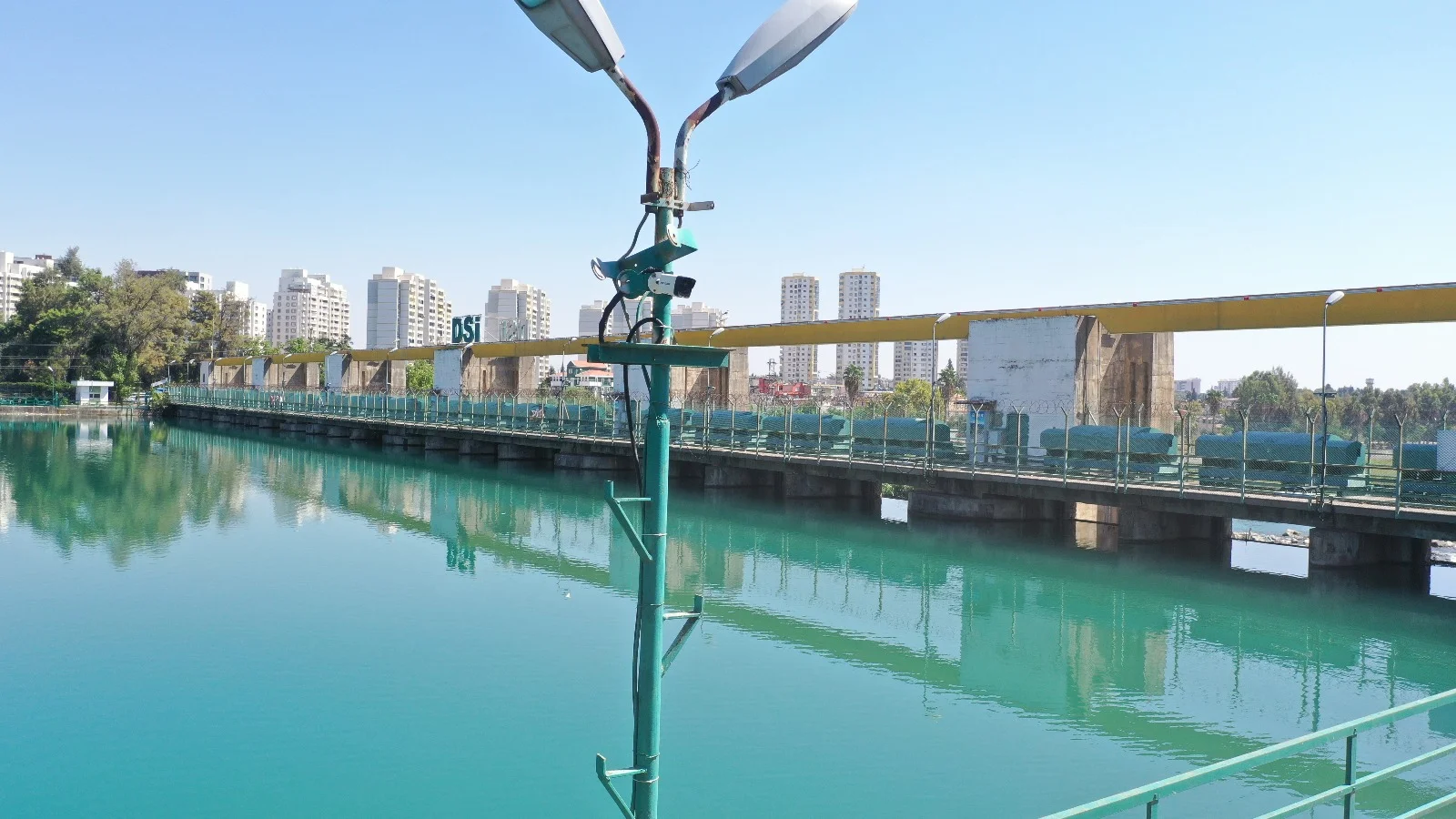

Seyhan Dams Automation

  • It is a project that covers the upstream and downstream controlled autonomous regulator and gate management of Seyhan, Çatalan, and Yedigöze Dams.
  • Under the principles of upstream and downstream controlled water management, all water inflows and outflows have been brought under control.
  • At all measurement points, non-contact water level stations provide real-time data to the system.
  • The Elman Radar has been activated for the measurement of the rivers feeding the dams, lake level, and the level measurements of the transmission canals for irrigation unions.

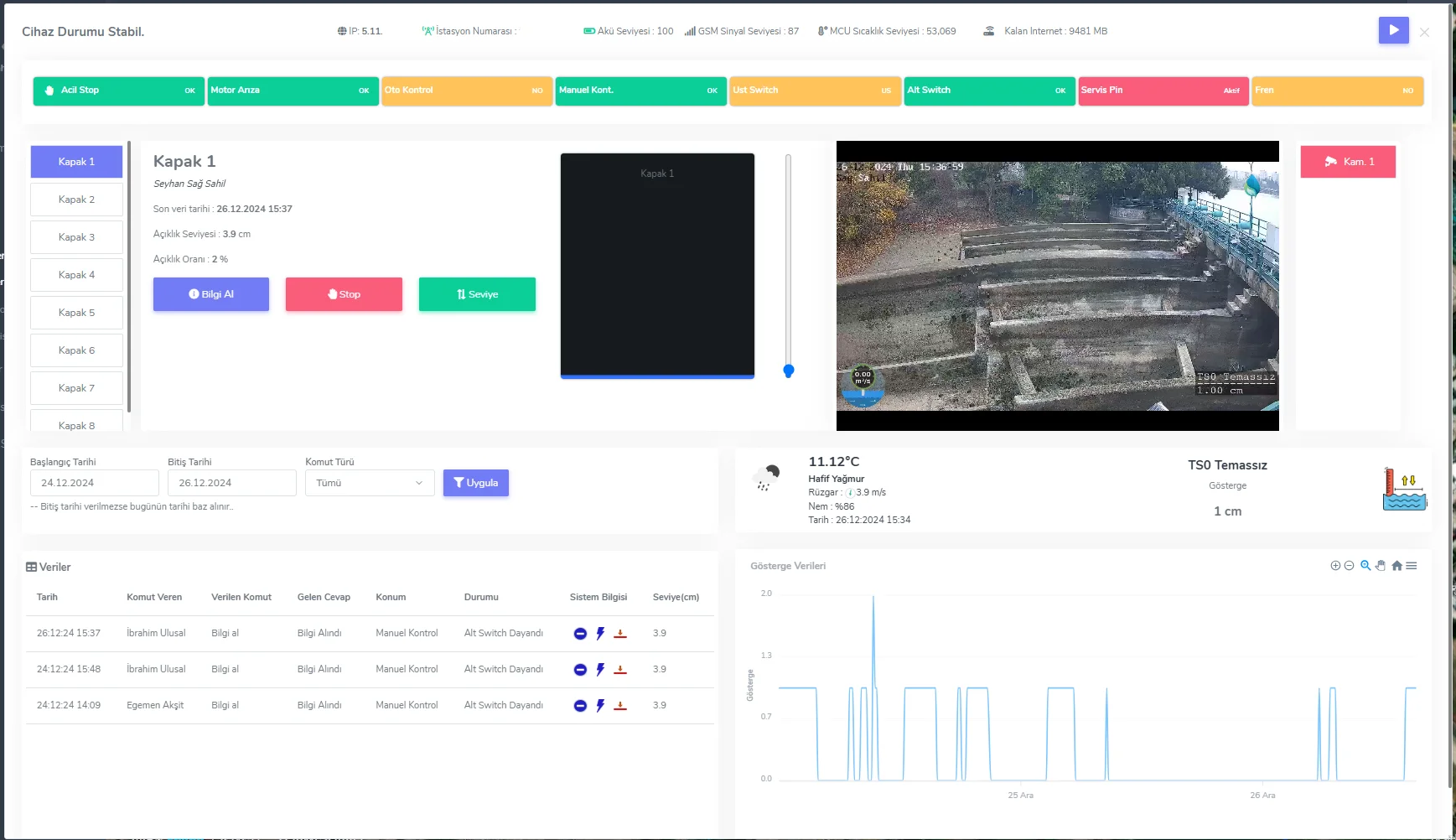

  • Through SCADA system integration, the system operates synchronously for flood mode and the management of water transmission channels. Information about where, who, which product, when, and how much is produced can be obtained.
  • Timely reflection of data and algorithmic support have ensured success in ensuring water and food supply security.
Processor
32 bit dual-core ARM
Internal Memory
16 MB
WiFi
2.4 GHz 802.11 b/g/n
Bluetooth
5.0, BLE
USB Type-C
1 Piece
Output
RS485 Modbus
Operating Voltage Range
9-35 V
Operating Temperature
-40°C / + 80°C
Measurement Range
20 cm -2000 cm (%0,1)
Wave Type
Electromagnetic Pulse
Wavelength Resolution
1 uS/mm
Energy Consumption
5V anında ~ 88mA
Protection Class
IP68
Humidity and Temperature Sensitive Calibration
Automatic
Slope Control
Automatic
Indication and Usage
HTTP Web Interface (WiFi connection)
Programlanabilme
HTTP Web Interface (WiFi connection)
Data Recording and Sending Interval
1’, 5’, 10’, 15’, 30’ and 60’ minutes and their multiples
Automatic Calibration
Available
GSM Modem
Optional
LoRa RF
Optional

All features may vary depending on production. It is not binding.
